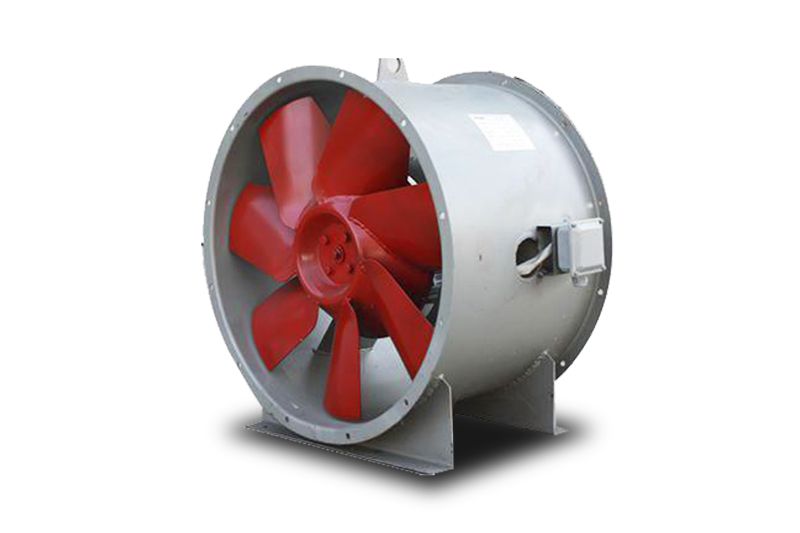

Industrial Vane Axial Fan

Application

Industrial vane axial fans are used for ventilation in a number of industries, including metallurgy, chemicals, food, medical equipment, mechanical equipment, factories, warehouses, offices, residential areas and more.

Parameters
Model Vane diameter (mm) Blast capacity (m3/h) Air pressure (Pa) Rotational Speed (r/min) Installed Capacity (kW) A sound pressure level dB(A) Weight (kg)
3.5 350 4225 3840 3350 280 360 420 2900 0.75 ≤78 61
4 400 5500 4800 3800 300 380 450 2900 1.1 ≤79 70
4.5 450 7852 6750 5586 310 380 478 2900 1.1 ≤80 78
5 500 8824 7861 6817 287 390 482 1450 1.5 ≤81 82
5.6 550 15200 12000 10900 380 450 482 1450 3 ≤83 90
6.3 630 20210 18700 15600 480 510 580 1450 4 ≤87 115
7 700 24380 22439 18908 610 655 728 1450 5.5 ≤88 160
8 800 31421 29172 26012 600 661 723 1450 7.5 ≤89 190
9 900 33510 32297 27613 562 668 840 1450 11 ≤90 250
10 1000 45679 40000 35000 630 690 770 1450 11 ≤90 280
11.2 1120 68085 60118 51230 580 647 690 960 18.5 ≤92 320
12 1200 50310 38500 26850 401 510 560 720 11 ≤87 430
