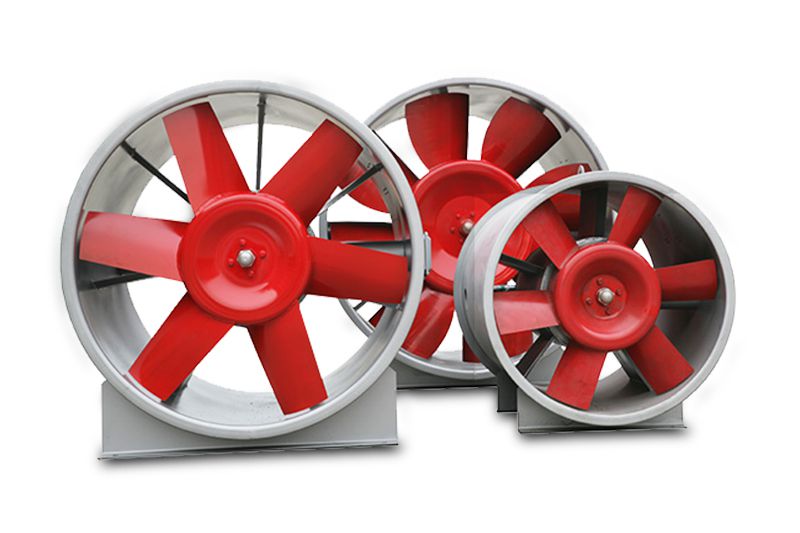

Industrial Axial Flow Fan

Industrial axial flow fans are widely used in wall mounted exhaust systems for industrial and mining enterprises, commercial facilities, public places, station air supply, duct air supply, roof ventilation and other places. Applications of the industrial axial flow fan include ventilation and air cooling systems in metallurgical and chemical industries, light industries, food industries, medicine and health industries, textile industries and more. Based on customer requests, we can provide various installation methods, including supporting leg rotary type, wall mounted type, tubular type and stationary type.

Request a Quote

Specification

DZ-11 wall mounted axial flow fan

It is applicable for the ventilation of dining halls, restaurants, and various industrial factory buildings. This axial flow fan is easily installed on walls.

Model	Blast capacity m³/h	Total pressure Pa	Rotational speed r/min	Motor powerkW	Noise dB(A)	Weight kg
2.2C	400	29	1450	0.025	54	8
3C	1600	39	1450	0.06	63.5	10
4B	4000	98	960	0.25	64.5	20
5A	6000	79	720	0.25	64	28
5B	7000	128	960	0.37	70	28
6A	9500	88	720	0.55	69	44
7A	15000	118	720	1.1	72	70
8A	22000	157	720	1.5	77	87

DZ-12 station type axial flow fan

It is applicable for the ventilation of various places and operating posts.

Model	Blast capacity m³/h	Total pressure Pa	Rotational speed r/min	Motor power kW	Noise dB(A)	Weight kg
3C	1600	39	1450	0.06	61.5	19
4B	4000	98	960	0.25	64.5	29
5A	6000	79	720	0.25	64	48
5B	7000	128	960	0.37	69	48
6A	9500	88	720	0.55	69	60
6B	14000	177	960	1.1	77	70
7A	14500	137	720	1.1	71	86
7B	22000	196	960	2.2	78	94

DZ-13 tubular axial flow fan

It is applicable for advanced civil buildings, as well as industrial and mining enterprises.

Model	Blast capacity m³/h	Static pressure Pa	Rotational speed r/min	Motor power kW	Noise dB(A)	Weight kg
2.5D	2000	150	2800	0.37	65	13
3C	1600	25	1450	0.06	61.5	11
3.2D	3000	160	2800	0.37	68	15
4C	5000	80	1450	0.55	69	22
5B	5500	80	960	0.37	70	36
5C	7000	90	1450	0.75	75	30
6B	10000	100	960	1.1	77.5	46
6C	15000	90	1450	2.2	80.5	61
7A	14000	70	720	1.1	69	70
7B	18000	120	960	2.2	78	78
7C	20000	150	1450	3	81.5	71
8A	20000	70	720	1.5	76.5	89
8B	25000	90	960	2.2	80.5	90
8C	28000	100	1450	4	81.5	88
10A	38000	65	720	3	81	158
10B	48500	116	960	5.5	85	163

Dimension of DZ industrial axial flow fan

Supporting leg rotary type

Model	D	D3	L	H
3	306	356	280	630
4	406	466	350	630
5	508	568	350	630
6	608	678	530	915
7	708	778	530	915
8	808	888	560	915
9	908	988	560	1000
10	1010	1100	580	1000

Stationary type

Model	D	D3	A	L1	L	H
3	306	356	200	180	260	190
4	406	466	260	200	320	245
5	508	568	260	300	330	295
6	608	678	350	400	420	350
7	708	778	380	500	500	410
8	808	888	400	500	520	465
9	908	988	400	600	520	515
10	1010	1100	420	600	600	570

Wall mounted type

Model	D	D3	L
2.2	226	276	260
2.5	256	306	260
3	306	356	260
3.2	321	371	260
4	406	466	320
5	508	568	330
6	608	678	420
7	708	778	500
8	808	888	520
10	1010	1100	600

Tubular type

Model	D	D3	L
2.2	226	276	260
2.5	256	306	260
3	306	356	260
3.2	321	371	260
4	406	466	320
5	508	568	330
6	608	678	420
7	708	778	500
8	808	888	520
10	1010	1100	600

Features

DZ industrial axial flow fans utilize a low rotational speed and high pressure coefficients, as well as a wide vane and large chord length.
Axial flow fans are highly efficient with a low noise level.
They can satisfy the requirements for blast capacity and air pressure under the conditions of a relatively low rotational speed.
