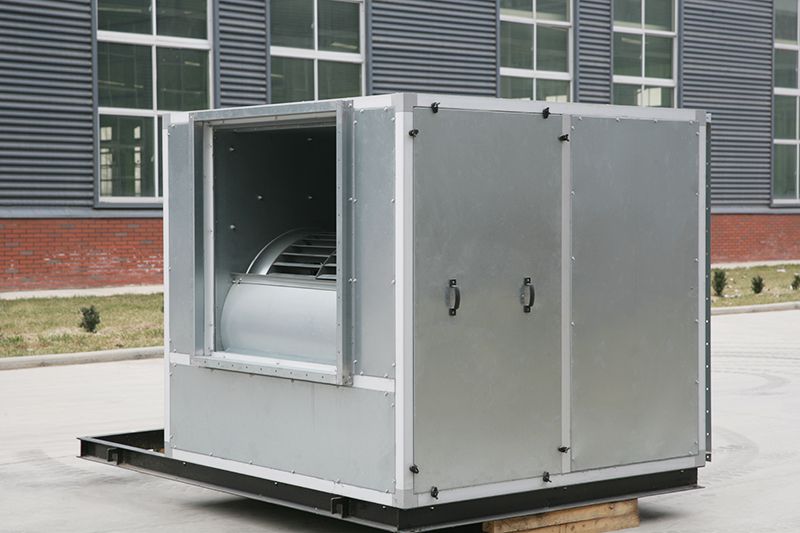

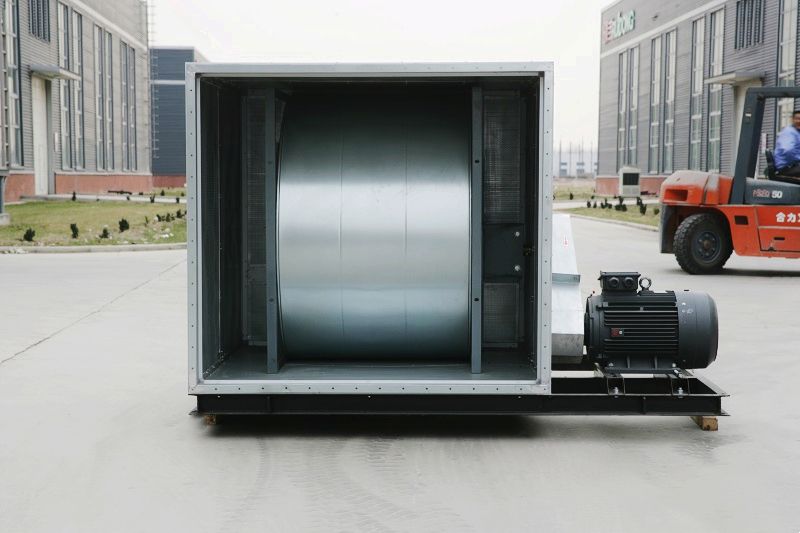

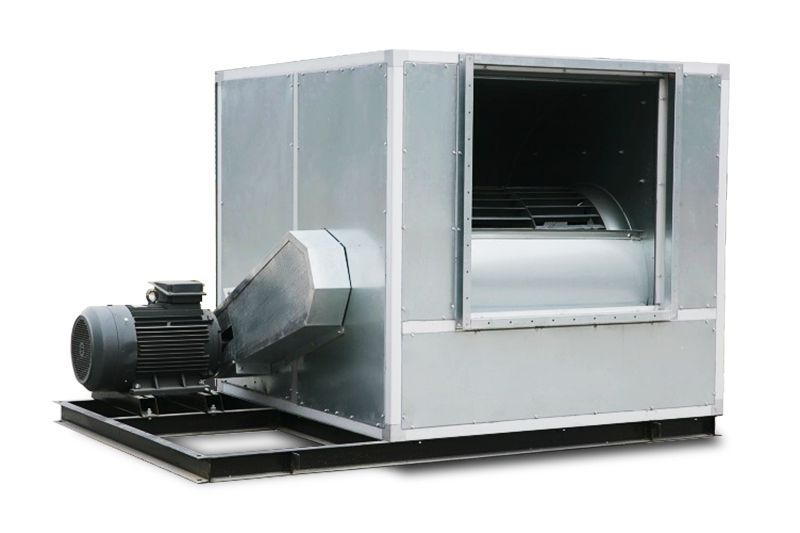

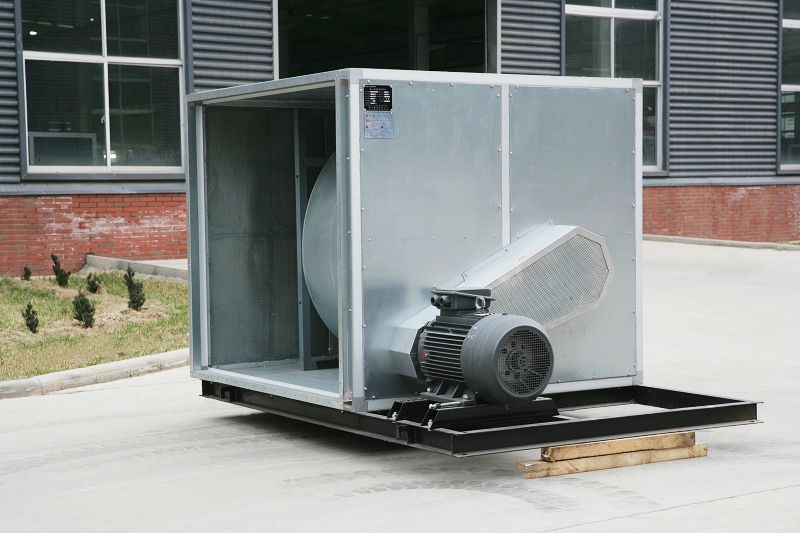

Centrifugal Fan Box

Centrifugal Fan Box
  • Centrifugal Fan Box
  • Centrifugal Fan Box
  • Centrifugal Fan Box
  • Centrifugal Fan Box
  • Application

    Fans can be widely used for ventilation and smoke exhaust in hotels, restaurants, auditorium, theater, basement, industrial and mining enterprises office buildings and other places, especially in places where low Noise level and large air flow are required to ventilate and exhaust smoke.

    Request a Quote
    Download
    • Specifications 1
    • Specifications 2
    • Specifications 3
    • Specifications 4
    • Specifications 5
    • Catalogue 1
    • Catalogue 2
    Parameters
    HTFC single speed centrifugal fan case-fire fighting
    Fan No. Model Power (kw) Speed (rpm) Air volume range
    (m3/h)
    Air pressure range (Pa)
    9
    HTFC 9#(F)Bb
    1.5 1450 3720 401
    HTFC 9#(F)Bc
    1.1 1450 4000 460
    HTFC 9#(F)Bc
    0.75 1450 3500 250
    HTFC 9#(F)Bd
    0.55 1450 3150 184
    10
    HTFC 10#(F)Bb
    2.2 1450 5415 547
    HTFC 10#(F)Ba
    1.5 1450 5200 400
    HTFC 10#(F)B
    1.1 1450 4000 410
    HTFC 10#(F)Bc
    0.75 1450 3530 328
    HTFC 10#(F)Bd
    0.55 1450 3230 248
    12
    HTFC 12#(F)Bc
    4 1450 8300 700
    HTFC 12#(F)Bb
    3 1450 8048 546
    HTFC 12#(F)Ba
    2.2 1450 6750 478
    HTFC 12#(F)B
    1.5 1450 6100 353
    HTFC 12#(F)Bd
    1.1 1450 5120 338
    12.5
    HTFC 12.5#(F)Bc
    4 1450 9250 520
    HTFC 12.5#(F)Bb
    3 1450 8280 500
    HTFC 12.5#(F)Ba
    2.2 1450 8057 452
    HTFC 12.5#(F)B
    1.5 1450 6868 390
    HTFC 12.5#(F)Bd
    1.1 1450 6100 250
    14
    HTFC 14#(F)B
    5.5 1450 11671 820
    HTFC 14#(F)Ba
    4 1450 11322 550
    HTFC 14#(F)Bd
    3 1450 10350 444
    HTFC 14#(F)Bb
    2.2 1450 9233 400
    HTFC 14#(F)Bc
    1.5 1450 8057 300
    HTFC 14#(F)Be
    2.2 960 10000 198
    HTFC 14#(F)Bf
    1.5 960 9000 151
    15
    HTFC 15#(F)B
    15 1450 16000 680
    HTFC 15#(F)Bj
    11 1450 15800 670
    HTFC 15#(F)Be
    7.5 1450 14000 610
    HTFC 15#(F)B0
    5.5 1450 12050 580
    HTFC 15#(F)Ba
    4 1450 10500 560
    HTFC 15#(F)Bd
    3 1450 9500 495
    HTFC 15#(F)Bb
    2.2 1450 8250 344
    HTFC 15#(F)Bc
    1.5 1450 8250 344
    HTFC 15#(F)Bg
    4 960 14010 300
    HTFC 15#(F)Bh
    3 960 12400 180
    HTFC 15#(F)Bi
    2.2 960 11030 210
    18
    HTFC 18#(F)Be
    11 1450 18755 900
    HTFC 18#(F)Bd
    7.5 1450 17910 642
    HTFC 18#(F)B
    5.5 1450 15010 556
    HTFC 18#(F)Bb
    4 1450 15000 384
    HTFC 18#(F)Ba
    3 1450 13050 400
    HTFC 18#(F)Bc
    2.2 1450 9200 320
    HTFC 18#(F)Bf
    5.5 960 16335 350
    HTFC 18#(F)Bg
    4 960 15125 270
    HTFC 18#(F)Bh
    3 960 14000 200
    HTFC 18#(F)Bi
    2.2 960 12200 170
    20
    HTFC 20#(F)Bb
    15 1450 23720 950
    HTFC 20#(F)Ba
    11 1450 21500 900
    HTFC 20#(F)B
    7.5 1450 20000 640
    HTFC 20#(F)Bc
    5.5 1450 16684 570
    HTFC 20#(F)Bf
    4 1450 15892 430
    HTFC 20#(F)Be
    3 1450 13700 370
    HTFC 20#(F)Bg
    5.5 960 20050 301
    HTFC 20#(F)Bh
    4 960 17200 260
    HTFC 20#(F)Bi
    3 960 15418 200
    22
    HTFC 22#(F)Bc
    18.5 1450 30800 1050
    HTFC 22#(F)Bb
    15 1450 29350 850
    HTFC 22#(F)Ba
    11 1450 26136 720
    HTFC 22#(F)B
    7.5 1450 22000 620
    HTFC 22#(F)Bf
    5.5 1450 16632 550
    HTFC 22#(F)Be
    4 1450 16000 430
    HTFC 22#(F)Bg
    7.5 960 25000 300
    HTFC 22#(F)Bh
    5.5 960 23000 250
    HTFC 22#(F)Bi
    4 960 20000 200
    25
    HTFC 25#(F)Bd
    22 1450 39800 850
    HTFC 25#(F)Bb
    18.5 1450 36000 800
    HTFC 25#(F)Ba
    15 1450 34300 710
    HTFC 25#(F)B
    11 1450 29000 720
    HTFC 25#(F)Bi
    7.5 1450 22400 630
    HTFC 25#(F)Bj
    15 960 35500 470
    HTFC 25#(F)Bk
    11 960 31000 390
    HTFC 25#(F)Bl
    7.5 960 28400 300
    HTFC 25#(F)Bm
    5.5 960 23700 260
    HTFC 25#(F)Bn
    4 960 21900 200
    28
    HTFC 28#(F)Bd
    30 1450 46020 1010
    HTFC 28#(F)Bc
    22 1450 44200 750
    HTFC 28#(F)Bb
    18.5 1450 38940 840
    HTFC 28#(F)B
    15 1450 33200 830
    HTFC 28#(F)Ba
    11 1450 27200 700
    HTFC 28#(F)Bf
    7.5 1450 20150 550
    HTFC 28#(F)Bh
    18.5 960 42480 630
    HTFC 28#(F)Bi
    15 960 32020 480
    HTFC 28#(F)Bj
    11 960 34360 450
    HTFC 28#(F)Bk
    7.5 960 26070 420
    30
    HTFC 30#(F)B
    45 1450 57600 1010
    HTFC 30#(F)Be
    37 1450 57000 1050
    HTFC 30#(F)Bd
    30 1450 54240 950
    HTFC 30#(F)Bc
    22 1450 46488 900
    HTFC 30#(F)Bb
    18.5 1450 41720 750
    HTFC 30#(F)Ba
    15 1450 32184 900
    HTFC 30#(F)Bf
    11 1450 19100 800
    HTFC 30#(F)Bg
    30 960 59600 680
    HTFC 30#(F)Bh
    22 960 51256 630
    HTFC 30#(F)Bo
    18.5 960 46488 750
    HTFC 30#(F)Bi
    15 960 44000 550
    HTFC 30#(F)Bj
    11 960 35760 500
    HTFC 30#(F)Bk
    7.5 960 29800 400
    HTFC 30#(F)Bl
    5.5 960 26230 250
    36
    HTFC 36#(F)Bk
    45 1450 71000 1150
    HTFC 36#(F)Bj
    37 1450 55840 1150
    HTFC 36#(F)Bi
    30 1450 48800 1100
    HTFC 36#(F)Bh
    22 1450 39800 1000
    HTFC 36#(F)Bg
    18.5 1450 34450 950
    HTFC 36#(F)Bd
    45 960 76700 910
    HTFC 36#(F)Bc
    37 960 68900 850
    HTFC 36#(F)Bb
    30 960 60580 800
    HTFC 36#(F)Ba
    22 960 54700 630
    HTFC 36#(F)B
    18.5 960 49900 600
    HTFC 36#(F)Be
    15 960 50500 430
    HTFC 36#(F)Bf
    11 960 45150 350
    40
    HTFC 40#(F)j
    55 1450 89400 1150
    HTFC 40#(F)Bi
    45 1450 71600 1150
    HTFC 40#(F)Bg
    37 1450 59600 1100
    HTFC 40#(F)Bh
    30 1450 51200 1100
    HTFC 40#(F)B
    55 960 84000 1100
    HTFC 40#(F)Bb
    45 960 79900 1000
    HTFC 40#(F)B0
    37 960 75000 900
    HTFC 40#(F)Ba
    30 960 70000 750
    HTFC 40#(F)Bd
    22 960 51260 750
    HTFC 40#(F)Be
    18.5 960 50100 660
    HTFC 40#(F)Bf
    15 960 48872 500
