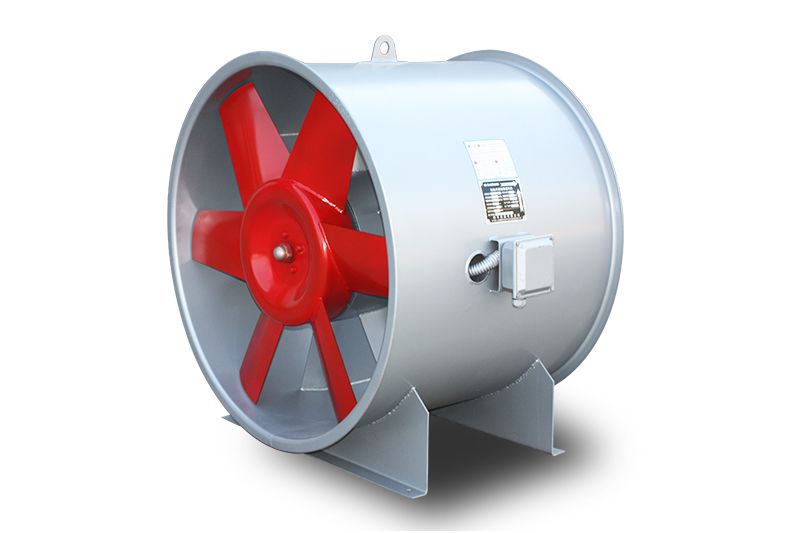

Industrial Axial Ventilation Fan

Application

Industrial axial ventilation fans are widely used in industrial ventilation air conditioning systems.

Parameters of DFZ series industrial axial ventilation fan
Model Blast capacity m3/h Total pressure Pa Installation capacity kW Specific A weighting sound dB(A) Rotational method
8 25000~30000 350-500 3~5.5 ≤24 Direct linkage
10 40000~55000 350-500 5.5~11 ≤23
12 55000~60000 350-500 7.5~15 ≤22
14 60000~80000 350-500 11~18.5 ≤22
16 80000~130000 350-500 11~30 ≤22 Belt rotation
Features

1. DFZ series industrial axial ventilation fans are designed with a large chord length, tilting vane and slow revolution speed. The pressure factor and discharge coefficients are both large.
2. The diameter ranges from 800mm to 2400mm, and the fan itself is divided into It is divided into 7 machine categories, including 8, 10, 12, 14, 16, 20 and 24. The blast capacity ranges from 25000 to 200000 m3/h and the total pressure ranges from 350Pa to 500Pa. Specific A-weighting sound is less than 24Db(A).
