Edible Mushroom Planting Unit, 30kW~85kW Air Conditioner

Application

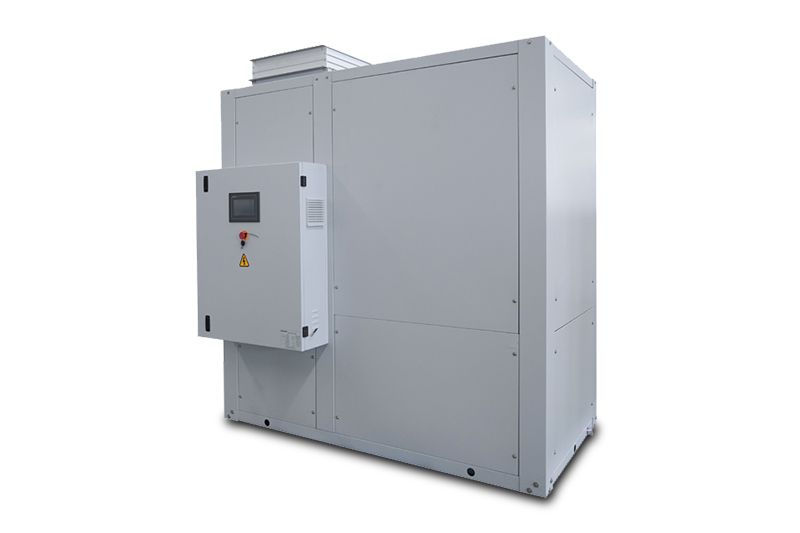

The corrosion resistant air conditioner features a high-quality pure titanium industrial heat exchanger to withstand adverse conditions, particularly in the presence of brackish water, acid, and alkaline liquids. These air conditioning units are recommended for use in seafood markets, aquariums, aquafarms, and agricultural applications.

Parameters of corrosion resistant air conditioner
Water source units
Models Z30SR Z40SR Z55SR Z65SR Z75SR Z85SR
Cooling capacity KW 32 41 57 65 75 85
Cooling Input power KW 7.9 10.2 14.4 15.9 18.2 18.9
Running current A 15 19.4 27.4 30.3 34.6 36
Heating capacity KW 31 39 53 60 71 80
Heating Input power KW 10 13 17.9 19.7 22.1 23.3
Running current A 18.8 24.4 33.7 37 41.6 43.8
Starting methods Direct starting
Adjusting capacity 50%-100%
Refirgerant R407C/R22
Refrigerant quantity Kg 7 9 13 15 17 19
Refrigerant control Thermal expansion valve
Compressor Type Closed scroll type
Qty Unit 2 2 2 2 2 2
Power 380V/3N/50Hz
Coiler heat exchanging capacity KW 30 40 50 60 70 80
Hot water flow m3/h 2.58 3.44 4.3 5.16 6.02 6.88
Groundwater flow m3/h 3.3 4.2 5.9 6.7 7.7 8.8
Fan Circulating air capacity m3/h 6000 8000 12000 12000 15000 15000
Fan motor power KW 1.5 2.2 4 4 5.5 5.5
External excess pressure Pa 200 250 350 350 400 400
Applicable area m2 200 250 350 400 450 550
Dimension L mm 2080 2080 2200 2400 2400 2400
W mm 1180 1180 1380 1410 1410 1410
H mm 2050 2050 2100 2200 2200 2200
Air outlet A mm 500 500 630 630 630 630
B mm 500 500 630 630 630 630
Return air outlet C mm 510 510 740 740 740 740
D mm 820 820 1110 1110 1110 1110
Fresh air inlet E mm 510 510 740 740 740 740
F mm 820 820 1110 1110 1110 1110
Weight Kg 620 660 900 910 950 980
Ground source units
Models Z30GR Z40GR Z55GR Z65GR Z75GR Z85GR
Cooling capacity KW 32 41 57 65 75 85
Cooling Input power KW 7.9 10.2 14.4 15.9 18.2 18.9
Running current A 15 19.4 27.4 30.3 34.6 36
Heating capacity KW 27.9 35.1 47.7 54 63.9 72
Heating Input power KW 9.9 12.9 17.8 19.6 22 23.3
Running current A 18.7 24.3 33.5 36.9 41.4 43.8
Starting methods Direct starting
Adjusting capacity 50%-100%
Refirgerant R407C/R22
Refrigerant quantity Kg 7 9 13 14 17 19
Refirgerantcontrol Thermal expansion valve
Compressor Type Closed scroll type
Qty. Unit 2 2 2 2 2 2
Power 380V/3N/50Hz
Coiler heat exchanging capacity KW 30 40 50 60 70 80
Hot water flow m3/h 2.58 3.44 4.3 5.16 6.02 6.88
Cooling water m3/h 6.88 8.6 12 13.5 15.9 17.85
Groundwater flow m3/h 2.7 3.4 4.7 5.3 6.2 7
Fan Circulating air capacity m3/h 6000 8000 12000 12000 15000 15000
Fan motor power KW 1.5 2.2 4 4 5.5 5.5
External excess pressure Pa 200 250 350 350 400 400
Applicable area m2 200 250 350 400 450 550
Dimension L mm 2080 2080 2200 2400 2400 2400
W mm 1180 1180 1380 1410 1410 1410
H mm 2050 2050 2100 2200 2200 2200
Air outlet A mm 500 500 630 630 630 630
B mm 500 500 630 630 630 630
Return air outlet C mm 510 510 740 740 740 740
D mm 820 820 1110 1110 1110 1110
Fresh air inlet E mm 510 510 740 740 740 740
F mm 820 820 1110 1110 1110 1110
Weight Kg 620 660 900 910 950 980
Air cooling units
Models Z30FR Z40FR Z55FR Z65FR Z75FR Z85FR
Cooling capacity KW 26 34 47 53 62 70
Cooling Input power KW 10.1 13.1 17 19.7 20.8 23.4
Running current A 19.1 24.8 32.2 37.4 39.5 44.5
Heating capacity KW 24 29 40 46 55 62
Heating Input power KW 9.9 12.9 16.8 19.6 20.4 23.2
Running current A 18.6 24.2 31.5 36.8 38.3 43.7
Starting methods Direct starting
Adjusting capacity 50%-100%
Refirgerant R407C/R22
Refrigerant quantity Kg 8 10 14 16 18 22
Refirgerant control Thermal expansion valve
Compressor Type Closed scroll type
Qty. Unit 2 2 2 2 2 2
Power 380V/3N/50Hz
Coiler heat exchanging capacity KW 30 40 50 60 70 80
Hot water flow m3/h 2.58 3.44 4.3 5.16 6.02 6.88
Fan Circulating air capacity m3/h 6000 8000 10000 12000 12000 15000
Fan motor power KW 1.5 2.2 3 4 4 5.5
External excess pressure Pa 200 250 350 350 400 400
Applicable area m2 150 220 300 400 450 550
Dimension L mm 2200 2200 2440 2440 2400 2400
W mm 1370 1370 1370 1370 1400 1400
H mm 2000 2000 2150 2150 2200 2200
Air outlet A mm 500 500 630 630 630 630
B mm 500 500 630 630 630 630
Return air outlet C mm 1100 1100 1100 1100 1200 1200
D mm 810 810 910 910 1200 1200
Fresh air inlet E mm 460 460 460 460 460 460
F mm 1110 1110 1110 1110 1110 1110
Weight Kg 620 660 900 910 950 980
Cold water units
Models Z30W Z40W Z55W Z65W Z75W Z85W
Cooling capacity KW 31 39 54 60 71 80
Cooling Input power KW 8.5 13 15.4 16.9 19.4 20.2
Running current A 16.2 24.7 29.3 32 36.9 38.3
Starting methods Direct starting
Adjusting capacity 50%-100%
Refirgerant R407C/R22
Refrigerant quantity Kg 7 9 13 14 16 18
Refrigerant control Thermal expansion valve
Compressor Type Closed scroll type
Qty. Unit 2 2 2 2 2 2
Power 380V/3N/50Hz
Coiler heat exchanging capacity KW 30 40 50 60 70 80
Hot water flow m3/h 2.58 3.44 4.3 5.16 6.02 6.88
Cooling water m3/h 6.7 8.4 11.6 12.9 15.3 17.2
Fan Circulating air capacity m3/h 6000 8000 12000 12000 15000 15000
Fan motor power KW 1.5 2.2 4 4 5.5 5.5
External excess pressure Pa 200 250 350 350 400 400
Applicable area m2 200 250 350 400 450 550
Dimension L mm 2080 2080 2200 2400 2400 2400
W mm 1180 1180 1380 1410 1410 1410
H mm 2050 2050 2100 2200 2200 2200
Air outlet A mm 500 500 630 630 630 630
B mm 500 500 630 630 630 630
Return air outlet C mm 510 510 740 740 740 740
D mm 820 820 1110 1110 1110 1110
Fresh air inlet E mm 510 510 740 740 740 740
F mm 820 820 1110 1110 1110 1110
Weight Kg 620 660 900 910 950 980
Central cooling and heating source units
Models Z30FR Z40FR Z55FR Z65FR Z75FR Z85FR
Cooling capacity kw 31 42 58 65 75 85
Heating capacity kw 51 68 83 90 100 115
Chilled water flow m3/h 5.3 7.2 9.9 11.1 12.9 14.6
Hot water flow m3/h 4.4 5.8 7.1 7.7 8.6 9.9
Fan Circulating air capacity m3/h 6000 8000 12000 12000 15000 15000
Fan motor power KW 1.5 2.2 4 4 5.5 5.5
External excess pressure Pa 200 250 350 350 400 400
Applicable area 200 250 350 400 450 550
Power 380V/3N/50Hz
Dimension L mm 2000 2000 2200 2200 2400 2400
W mm 1100 1100 1300 1300 1400 1400
H mm 2200 2200 2200 2200 2200 2200
Air outlet A mm 500 500 630 630 630 630
B mm 500 500 630 630 630 630
Return air outlet C mm 800 800 1000 1000 1200 1200
D mm 1200 1200 1200 1200 1200 1200
Fresh air inlet E mm 500 500 630 630 630 630
F mm 500 500 630 630 630 630
Weight Kg 249 261 287 305 385 522
Features of corrosion resistant air conditioner

1. Micro-computerized controller system allows for free temperature adjustment with precision.
2. Safe and convenient. Heating method doesn't use a heater strip, thus the danger of electric leakage is avoided.
3. High-quality industrial pure titanium heat exchanger provides excellent corrosion resistance.
4. Dual heating and cooling functionality.
5. Temperature memory system. In case of power failure, the temperature memory system can guarantee the machine goes back to work at the same power level as before the power loss.
6. Overheating alarm.
