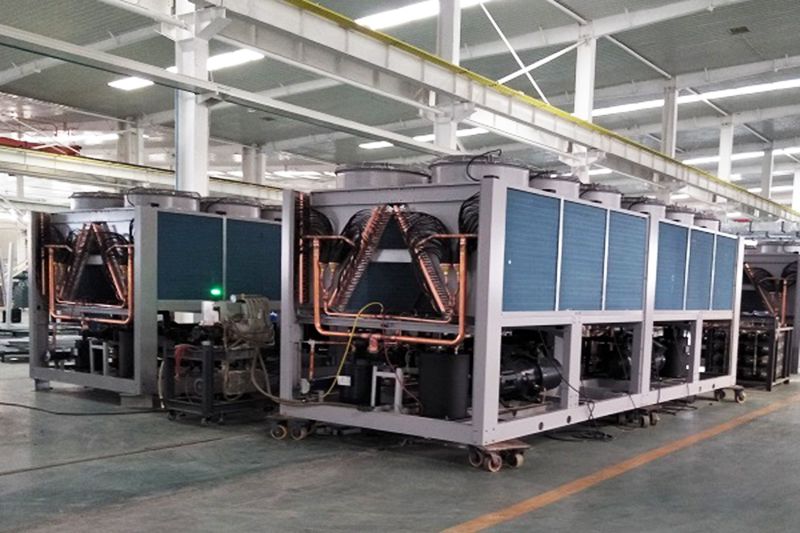

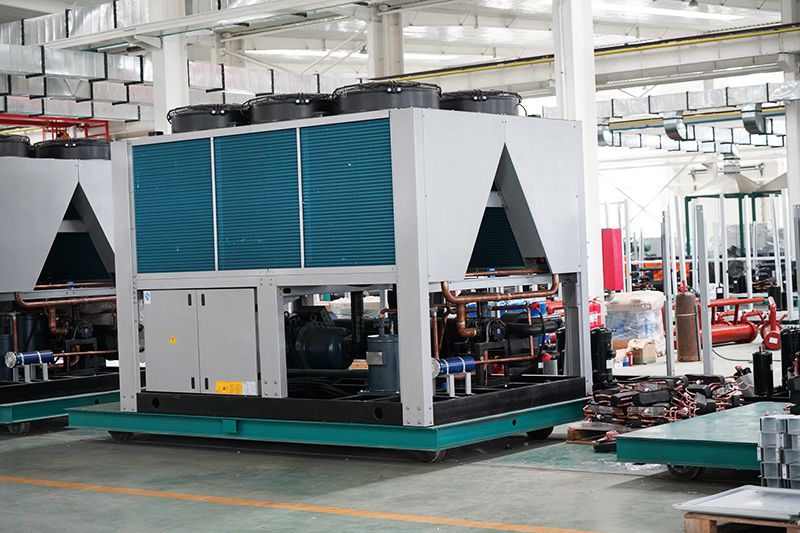

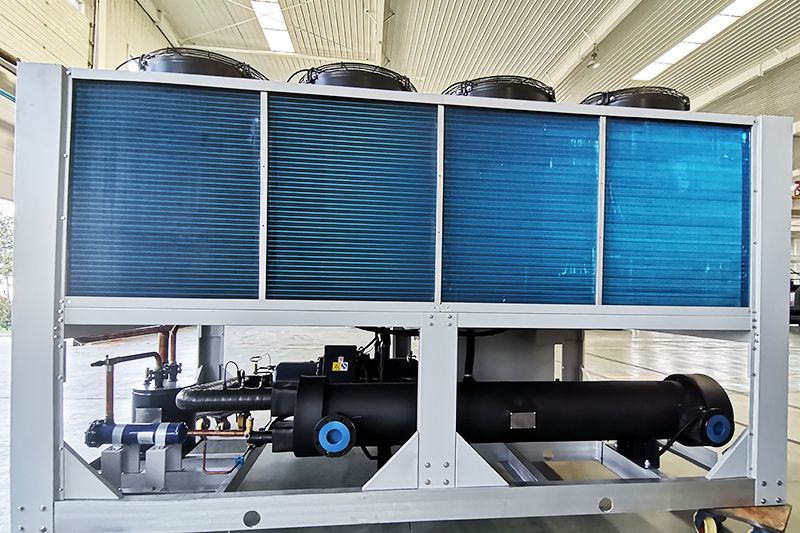

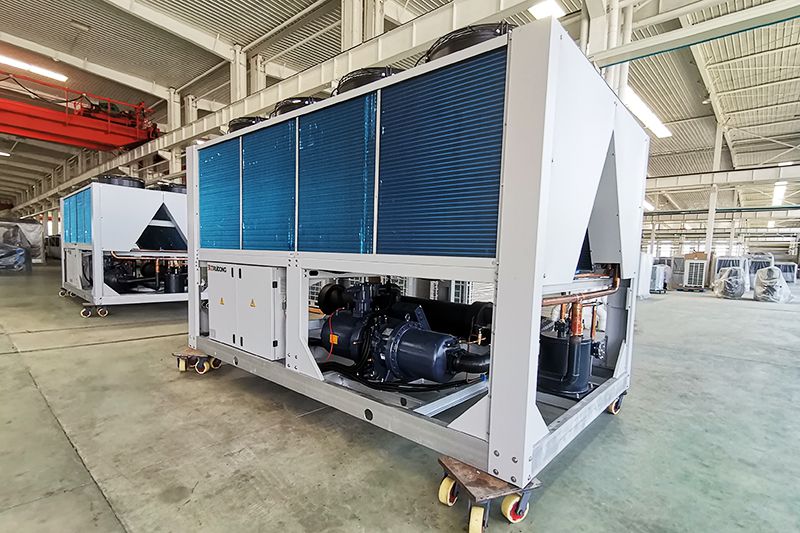

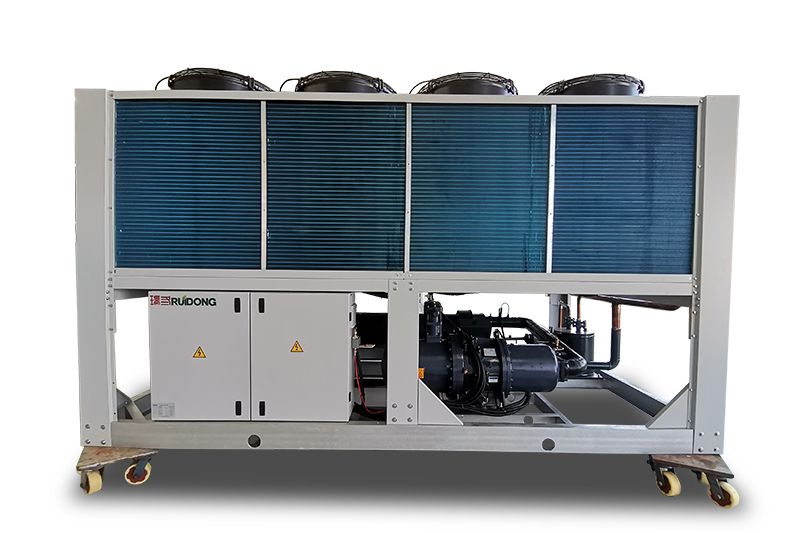

Air Cooled Screw Chiller and Heat Pump, 140kW-1200kW

Application

The air cooled screw chiller and heat pump is used for heating and cooling applications in large commercial structures such as malls, office buildings, workshops, hotels, and hospitals. The air cooling unit is especially preferred in locations in which water is scarce.

Parameters
No. RLSFG140 RLSFG160 RLSFG210 RLSFG270 RLSFG340 RLSFG440 RLSFG500 RLSFG580 RLSFG680 RLSFG780 RLSFG840 RLSFG880 RLSFG940 RLSFG1000 RLSFG1080 RLSFG1200 RLSFG300 RLSFG420 RLSFG540 RLSFG600 RLSFG720 RLSFG840
Cooling capacity KW 140 159 212 267 336 436 502 581 672 772 838 872 938 1004 1083 1162 302 416 534 604 718 832
Heating capacity KW 152 172 232 291 370 480 - - 678 774 - 875 - - - - 293 399 457 586 692 798
Input power KW 42 48 66 83 116 152 172 196 232 268 288 304 324 344 368 392 96 135 172 192 231 270
Power supply 380V / 3PH / 50HZ 380V / 3PH / 50HZ 380V / 3PH / 50HZ
Energy control 25% ~ 100% 25% ~ 100% 25% ~ 100%
Compressor Type Semi Hermetic Screw Type Semi Hermeic Screw Type Semi Hermeic Screw Type
Qty 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2 1 1 2 2 2 2
Start model Y-△ Y-△ Y-△
Refrigerant Type R22 / R407c R22 / R407c R134a
Charge(kg) 36 45 56 75 76 99 114 132 153 176 191 198 213 228 246 264 56 77 100 112 133 154
Control EXV TXV EXV
Evaporator Type Shell & Tube Shell & Tube Shell & Tube
Pressure drop KPa 70 ~ 90 70 ~ 90 70 ~ 90
Pipe connection size (DN) 80 80 100 100 100 125 125 125 150 150 150 150 200 200 200 200 100 125 125 125 150 150
Cooling water flow m³/h 24.1 27.3 36.5 45.9 58 75 86 100 116 133 144 150 161 173 186 200 52 72 93 104 123 143
Hot water flow m³/h 26.5 30.1 40.4 50.8 58 75 - - 117 133 - 150 - - - - 50 69 83 101 119 137
Condenser Type Inner grooved copper tube with hydrophilic aluminum fins Inner grooved copper tube with hydrophilic aluminum fins Inner grooved copper tube with hydrophilic aluminum fins
Condenser fan 4 4 4 4 4 4 4 4 8 8 8 8 8 8 8 8 4 4 8 8 8 8
Dimension L mm 2400 2400 2400 3400 4100 4100 5010 5010 8500 8500 9410 8500 9410 10320 10320 10320 4100 5010 5010 8500 9410 10320
W mm 2250 2250 2250 2250 2250 2250 2250 2250 2250 2250 2250 2250 2250 2250 2250 4500 2250 2250 2250 2250 2250 2250
H mm 2220 2220 2220 2240 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450 2450
Net weight KG 1700 1900 2220 2700 3000 4700 5400 5800 6000 7700 8400 9400 10100 10800 11200 11600 4700 5400 5800 9400 10100 10800
Running weight KG 2000 2200 2500 3200 3500 5100 5800 6200 6600 8400 9300 10200 10900 11600 12000 12400 5100 5800 6200 10200 10900 11600
Noise dB(A) 73 73 74 74 75 75 76 76 77 77 77 77 78 78 79 79 75 75 76 77 77 78
Protection measures 1.High &low voltage protection; 2.Anti-freezing protection; 3.Temperature control; 4.Power anti-phase protection; 5.High & low pressure protection; 6.High pressure exhaust temperature protection; 7.Built-in motor overheating protection; 8.Over-current protection; 9. Safe valve; 10.Check valve
Product features

The chiller and pump features a modular design. Each module has the same dimensions except for length. By combining different modules, various cooling and heating demands can be met. Each module is connected through a sophisticated communication system that is controlled by a micro-computer for maximum efficiency.

Easy assembly
All assemblies are finished in our factory. Prior to delivery, the products are strictly tested and adjusted. When assembling the equipment onsite, the machine can immediately be put into operation after connecting it to a power supply.

Space saving
The machine set features a waterproof design. It can be directly installed on a building's roof, inside, or near the structure.

No need for installation of cooling tower
The machine set adopts air cooling methods, which is convenient for management and maintenance. It is especially applicable for the places lack of water.

Cost saving
It reduces the material costs, assembly costs, operation costs, and maintenance costs compared to other refrigeration corollary equipment because it does not require a cooling tower, cooling system pipeline, or cooling circulating water pump.

Easy operation
The machine is controlled through an easy to use interface on its panel. The panel displays the running status, running data, and warning status. The controller allows for time control and it allows for automated operation.

High energy efficiency and low noise
The machine features a high performance semi-hermetic dual screw type compressor with a condenser and refrigeration components supplied by trusted manufacturers. The optimal design and assembly is thanks to strict testing and quality control measures during production. The equipment features an automatic temperature control system for the automatic adjustment of load to minimize the use of electrical power during cooling and heating applications.

Attractive appearance and excellent corrosion resistance
The shell is constructed from galvanized steel sheet. The external surface is coated with electrostatic plastic. This gives the cooling unit improved adaptability, particularly when installed outdoors.

Main components of air cooled screw chiller and heat pump

Screw type compressor
1. High-performance screw type compressor, 20% higher energy efficiency compared to normal compressor.
2. Four-segment (100%-75%-50%-25%), three-segment (100%-66%-33%) and non-segment control system.
3. Built-in oil pressure system can guarantee the best lubricating effect of the compressor without an oil pump. Double layer filter type oil separator and compressor are combined. External oil separator can be installed under special conditions.
4. R134a, R407c and other environmental friendly cold media can be adopted.
5. All-around compressor volume ratios with VI=2.2, 2.6, 3.0 and 3.5 are optional, which can effectively avoid energy waste by over-compression or under-compression. Volume control system is composed of a solenoid valve and slide valve, which can easily achieve partial load operation. Compressor has 25%-50%-75%-100% segmental adjust functions and non-segment functions to be fully compatible with building loads. Compared with piston compressors, the screw type compressor has fewer moving parts, only 1/3-1/4 of the piston compressor.

Finned condenser
The air cooling finned condenser adopts an inner grooved copper tube with hydrophilic aluminum fins. The copper tube and fins are tightly bound together to achieve the best heat exchange effects.

Shell and tube type evaporator
The pressure vessels are constructed form high-quality steel plate. Its manufacture and testing meets JB/T4750-2003 ‘Pressure Vessel for Refrigeration Equipment' standards. Exterior surface features flame-retardant water-proof heat-insulation and preservation materials. The evaporator baffle plate adopts PVC engineering plastic which has excellent corrosion resistance and good air impermeability to make the cooling water flow upwards and downwards along the baffle plate. This improves the heat exchange capacity of the evaporator.

Expansion valve
The electronic expansion valve control system can reach a control accuracy up to 2600 steps. According to suction superheating and saturation pressure, combined with the electronic control system, we can precisely control the refrigerant flow, so as to ensure the unit is always in best running condition and the maximum capacity can be achieved. The adoption of highly efficient heat exchange tubes improves energy efficiency and effectiveness.

Distribution control box
Distribution control cabinet. The distribution control cabinet is composed of compressor starting equipment, a power protector and a micro-computerized controller. The micro-computerized controller can run stably and safely under a temperature range of -15℃ to 65℃. It is equipped with a RS-232 and RS-485 standard communication interface. It can receive a remote signal for starting up and shutting down.

Safety equipment
High and low voltage switch, anti-freezing temperature control, lube oil heater, high-pressure exhaust check valve, replaceable filter element dry filter, piezometer, emergency stop switch, overload protector, power protector, refrigerant injector.
