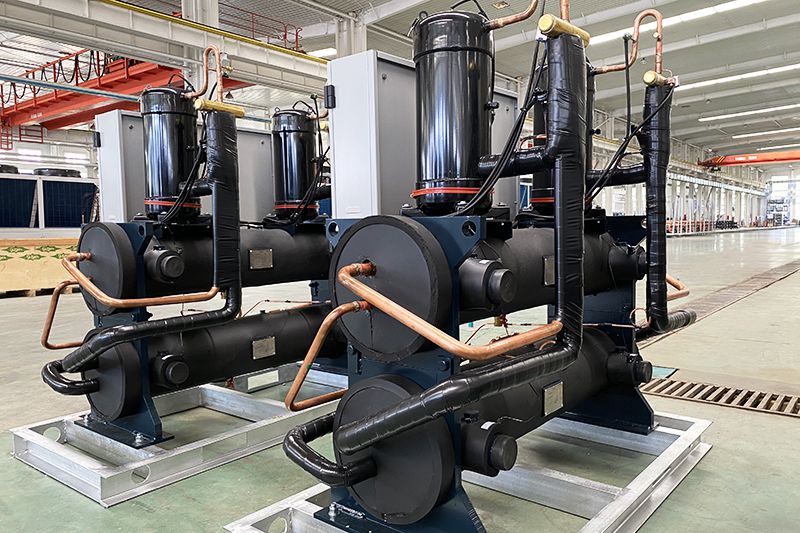

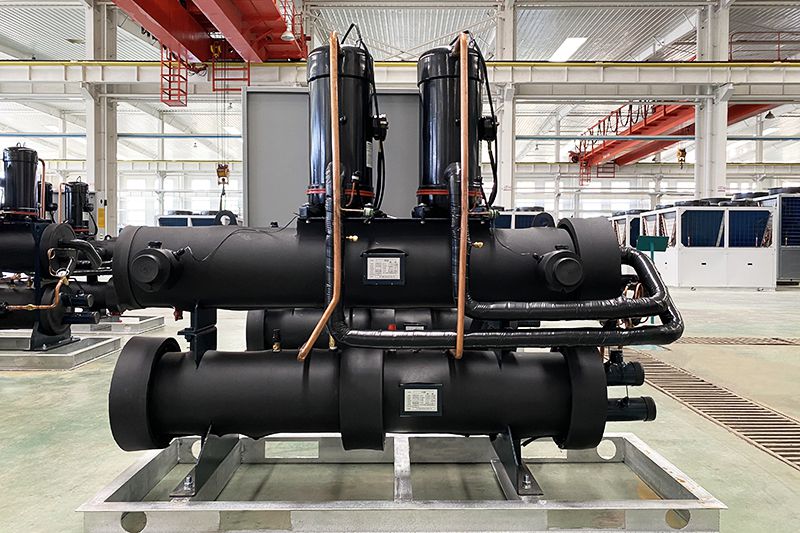

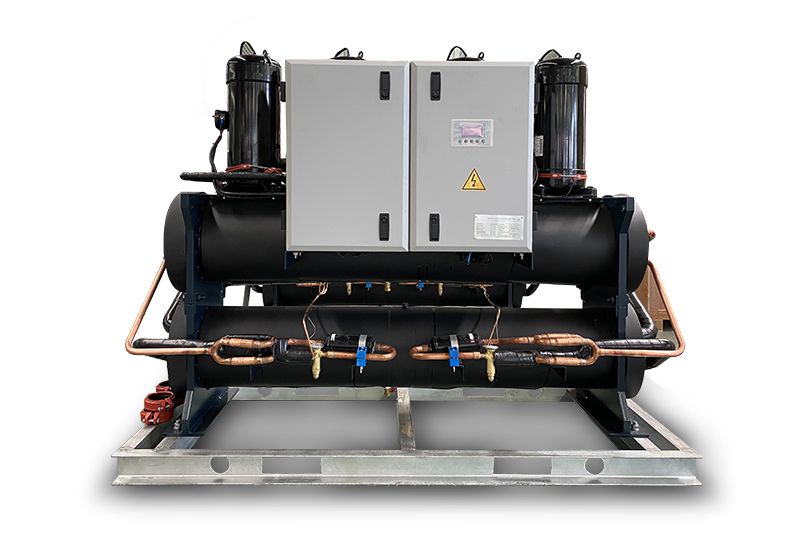

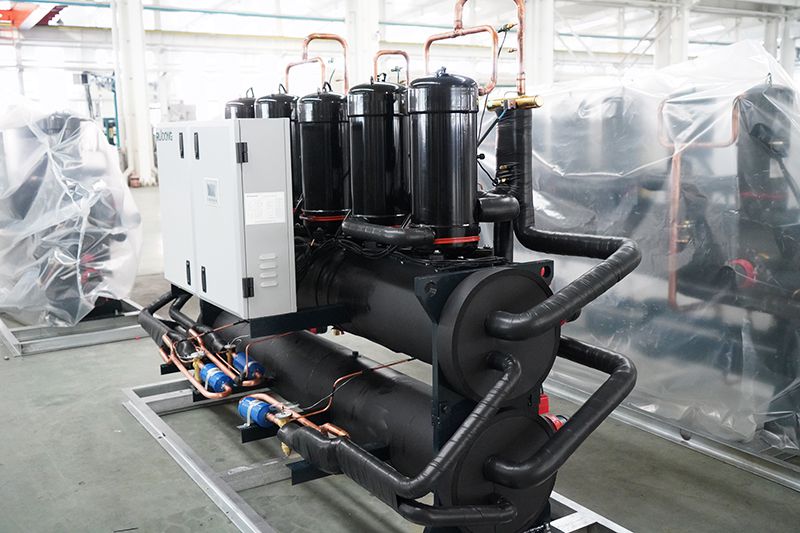

Water Cooled Scroll Chiller and Heat Pump, 5kW-280kW

Application

The water cooled scroll chiller and heat pump is specially engineered for the cooling and heating of large-scale commercial buildings such as malls, offices, workshops, hotels, and hospitals.

Parameters of water cooled scroll chiller and heat pump
Underground water condition
Model RLSW06 RLSW08 RLSW10 RLSW14 RLSW18 RLSW20 RLSW30 RLSW40
Cooling capacity KW 6 8 10 14 18 19 31 41
Cooling input power KW 1.5 1.7 2.3 2.4 3.1 3.5 5.2 6.9
Heating capacity KW 7 9 11 15 19 21 32 44
Heating input power KW 2.1 2.5 3.3 3.4 4.5 4.7 7.3 9.9
Power supply 220V / 1PH / 50HZ 380V / 3PH / 50HZ
Compressor Type Hermetic Rotary Type Hermetic Scroll Type
Qty 1
Start model Directly Start
Refrigerant Type R22 /R407c
Charge
(kg)
1.5 1.8 2.5 3.1 4.1 4.5 6.0 8.0
Control TXV
Evaporator Type Double tube / Plate
Pressure drop KPa ≤50
Pipe connection size (DN) 25 25 25 25 32 50 50 50
Water flow
in/out
Cooling m³/h 1.1 1.4 1.9 2.4 3.1 3.2 5.3 7.1
Heating m³/h 0.7 0.9 1.2 1.5 2.0 2.2 2.8 3.7
Water temperature Cooling 12/7
Heating 40/-
Condenser Type Double tube / Plate
Pressure drop KPa ≤50
Pipe connection size (DN) 25 25 25 25 32 50 50 50
Water flow
in/out
Cooling m³/h 0.7 0.9 1.2 1.5 2.0 2.2 2.8 3.7
Heating m³/h 1.1 1.4 1.9 2.4 3.1 3.2 5.3 7.1
Water temperature Cooling 18/29
Heating 15/-
Structure Horizontal
Dimension L mm 1200 1200 1200 1200 1200 1400 1400 1400
W mm 700 700 700 700 700 655 655 655
H mm 1000 1000 1000 1000 1000 1100 1100 1100
Net weight KG 150 175 190 210 235 240 270 285
Running weight KG 195 206 224 248 280 285 325 340
Noise dB(A) 52 52 53 53 53 54 54 56
Protection measures 1.High andlow voltage protection; 2.Anti-freezing protection; 3.Temperature control; 4.Power anti-phase protection; 5.High and low pressure protection; 6.High pressure exhaust temperature protection; 7.Built-in motor overheating protection; 8.Over-current protection; 9. Safe valve; 10.Check valve

Notes:
1) Built-in water pump and expansion tank are optional
2) Different power supplies are optional
3) R410a refrigerant is optional

Underground piping loop condition
Model RLSW06 RLSW08 RLSW10 RLSW14 RLSW18 RLSW20 RLSW30 RLSW40
Cooling capacity KW 6 8 10 14 18 19 31 41
Cooling input power KW 1.5 1.8 2.4 2.4 3.2 3.3 5.4 7.1
Heating capacity KW 8 9 12 15 19 22 31 42
Heating input power KW 2.1 2.5 3.1 3.4 4.5 4.3 7.7 9.9
Power supply 220V / 1PH / 50HZ 380V / 3PH / 50HZ
Compressor Type Hermetic Rotary Type Hermetic Scroll Type
Qty 1
Start model Directly Start
Refrigerant Type R22 /R407c
Charge
(kg)
1.4 1.7 2.4 3.1 3.6 4.0 6.0 7.0
Control TXV
Evaporator Type Double tube / Plate
Pressure drop KPa ≤50
Pipe connection size (DN) 25 25 25 32 32 50 50 50
Water flow
in/out
Cooling m³/h 1.1 1.3 1.8 2.3 2.7 3.1 5.2 6.9
Heating m³/h 1.3 1.6 2.2 2.9 3.4 3.9 6.5 8.6
Water temperature Cooling 12/7
Heating 40/-
Condenser Type Double tube / Plate
Pressure drop KPa ≤50
Pipe connection size (DN) 25 25 25 25 32 50 50 50
Water flow
in/out
Cooling m³/h 1.3 1.6 2.2 2.9 3.4 3.9 6.5 8.6
Heating m³/h 1.1 1.3 1.8 2.3 2.7 3.1 5.2 6.9
Water temperature Cooling 25/30
Heating 10/-
Structure Horizontal
Dimension L mm 1200 1200 1200 1200 1200 1400 1400 1400
W mm 700 700 700 700 700 655 655 655
H mm 1000 1000 1000 1000 1000 1100 1100 1100
Net weight KG 150 175 190 210 235 240 270 285
Running weight KG 195 206 224 248 280 285 325 340
Noise dB(A) 52 52 53 53 53 54 54 56
Protection measures 1.High andlow voltage protection; 2.Anti-freezing protection; 3.Temperature control; 4.Owe anti-phase protection; 5.High and low pressure protection; 6.High pressure exhaust temperature protection; 7.Built-in motor overheating protection; 8.Over-current protection; 9. Safe valve; 10.Check valve

Notes:
1) Built-in water pump and expansion tank are optional
2) Different power supply are optional
3) R410a refrigerant is optional

Underground piping loop condition
Model RLSW60 RLSW80 RLSW120 RLSW160 RLSW200 RLSW240 RLSW280
Cooling capacity KW 60.6 80 120 160 200 240 290
Cooling input power KW 10.8 14.2 21.3 28.4 35.5 42.6 46.8
Heating capacity KW 62 83 125 167 209 250 312
Heating input power KW 15.4 19.8 29.7 39.6 49.5 59.4 65.2
Power supply 380V / 3PH / 50HZ
Compressor Type Hermetic Scroll Type
Qty 1 2 3 4 5 6 2
Start model Directly Start
Refrigerant Type R22 /R407c
Charge
(kg)
11 15 22 30 37.0 44.0 54.0
Control TXV
Evaporator Type Double tube / Plate
Pressure drop KPa ≤70
Pipe connection size (DN) 50 65 80 80 100 100 100
Water flow
in/out
Cooling m³/h 10.4 13.8 20.64 27.5 34.4 41.3 49.9
Heating m³/h 13 17.2 25.8 32.4 40.5 48.6 57.9
Water temperature Cooling 12/7
Heating 40/-
Condenser Type Double tube / Plate
Pressure drop KPa ≤70
Pipe connection size (DN) 50 65 80 80 100 100 100
Water flow
in/out
Cooling m³/h 13 17.2 25.8 32.4 40.5 48.6 57.9
Heating m³/h 10.4 13.8 20.64 27.5 34.4 41.3 49.9
Water temperature Cooling 25/30
Heating 10/-
Structure Horizontal
Dimension L mm 2100 2100 2400 2800 2800 2800 2800
W mm 800 800 800 800 1200 1200 1200
H mm 1700 1700 1700 1800 1800 1800 2000
Net weight KG 520 630 830 920 1040 1360 1420
Running weight KG 610 820 920 1050 1150 1480 1550
Noise dB(A) 56 56 58 61 62 64 65
Protection measures 1.High andlow voltage protection; 2.Anti-freezing protection; 3.Temperature control; 4.Owe anti-phase protection; 5.High and low pressure protection; 6.High pressure exhaust temperature protection; 7.Built-in motor overheating protection; 8.Over-current protection; 9. Safe valve; 10.Check valve
Underground piping loop condition
Model RLSW60 RLSW80 RLSW120 RLSW160 RLSW200 RLSW240 RLSW280
Cooling capacity KW 60.6 80 120 160 200 240 290
Cooling input power KW 10.8 14.2 21.3 28.4 35.5 42.6 46.8
Heating capacity KW 62 83 125 167 209 250 312
Heating input power KW 15.4 19.8 29.7 39.6 49.5 59.4 65.2
Power supply 380V / 3PH / 50HZ
Compressor Type Hermetic Scroll Type
Qty 1 2 3 4 5 6 2
Start model Directly Start
Refrigerant Type R22 /R407c
Charge
(kg)
11 15 22 30 37.0 44.0 54.0
Control TXV
Evaporator Type Double tube / Plate
Pressure drop KPa ≤70
Pipe connection size (DN) 50 65 80 80 100 100 100
Water flow
in/out
Cooling m³/h 10.4 13.8 20.64 27.5 34.4 41.3 49.9
Heating m³/h 13 17.2 25.8 32.4 40.5 48.6 57.9
Water temperature Cooling 12/7
Heating 40/-
Condenser Type Double tube / Plate
Pressure drop KPa ≤70
Pipe connection size (DN) 50 65 80 80 100 100 100
Water flow
in/out
Cooling m³/h 13 17.2 25.8 32.4 40.5 48.6 57.9
Heating m³/h 10.4 13.8 20.64 27.5 34.4 41.3 49.9
Water temperature Cooling 25/30
Heating 10/-
Structure Horizontal
Dimension L mm 2100 2100 2400 2800 2800 2800 2800
W mm 800 800 800 800 1200 1200 1200
H mm 1700 1700 1700 1800 1800 1800 2000
Net weight KG 520 630 830 920 1040 1360 1420
Running weight KG 610 820 920 1050 1150 1480 1550
Noise dB(A) 56 56 58 61 62 64 65
Protection measures 1.High and low voltage protection; 2.Anti-freezing protection; 3.Temperature control; 4.Owe anti-phase protection; 5.High and low pressure protection; 6.High pressure exhaust temperature protection; 7.Built-in motor overheating protection; 8.Over-current protection; 9. Safe valve; 10.Check valve

Notes:
1) Built-in water pump and expansion tank are optional
2) Different power supplies are optional
3) Standard unit doesn't have sheet casing. The parameters in parenthesis are for standard units.

Cooling tower condition
Model RLSW60 RLSW80 RLSW100 RLSW120 RLSW160 RLSW200 RLSW240 RLSW280
Cooling capacity KW 56 76 95 114 152 190 228 273
Input power KW 11.8 15.8 23.7 23.7 31.6 39.5 47.4 52
Power supply 380V / 3PH / 50HZ
Compressor Type Hermetic Scroll Type
Qty 2 2 3 3 4 5 6 2
Start model Directly Start
Refrigerant Type R22 /R407c
Charge
(kg)
10 14 20 21 28 35.0 42.0 50.0
Control TXV
Evaporator Type Shell and Tube
Pressure drop KPa ≤70
Pipe connection size (DN) 50 65 65 80 80 100 100 100
Water in/out temp. 12/7
Cooled water flow m³/h 9.7 13.1 18.2 19.6 26.1 32.7 39.2 47
Condenser Type Shell and Tube
Pressure drop KPa ≤70
Pipe connection size (DN) 50 65 65 80 80 100 100 100
Water in/out temp. 30/35
Cooling water flow m³/h 11.6 15.6 22.0 23.4 31.2 39.5 46.8 55.3
Heat recovery 30% Type Shell and Tube
Pipe (DN) 40 40 50 50 50 50 65 65
water flow (m³/h) 3.8 5.1 7.3 7.7 10.3 12.0 15.4 18.2
100% Type Shell and Tube
Pipe (DN) 50 65 65 80 80 100 100 100
water flow (m³/h) 11.6 15.6 22.0 23.4 31.2 39.5 46.8 55.3
Structure Vertical
Dimension L mm 2100(1800) 2100(1800) 2400 2400 2400 2800 3166 3166
W mm 800(650) 800(650) 800 850 850 850 850 850
H mm 1650(1200) 1650(1200) 1650(1350) 1700(1350) 1700(1400) 1700(1400) 1700(1400) 1700(1560)
Net weight KG 520(410) 630(495) 780(680) 830(690) 920(780) 1040(880) 1350(1150) 1360(1160)
Running weight KG 610(490) 760(610) 920(820) 920(830) 1050(940) 1150(1060) 1480(1380) 1490(1390)
Noise dB(A) 56 56 58 58 61 62 64 65
Protection measures 1.High and low voltage protection; 2.Anti-freezing protection; 3.Temperature control; 4.Power anti-phase protection; 5.High and low pressure protection; 6.High pressure exhaust temperature protection; 7.Built-in motor overheating protection; 8.Over-current protection; 9. Safe valve; 10.Check valve

Notes:
1) Built-in water pump and expansion tank are optional
2) Different power supplies are optional
3) Standard unit doesn't have sheet casing. The parameters in parenthesis are for standard units.

Model RLSW06 RLSW08 RLSW10 RLSW14 RLSW18 RLSW20 RLSW30 RLSW40
Cooling capacity KW 5.4 7.2 9.5 13.3 17.2 19 28 38
Input power KW 1.7 2.0 2.6 2.7 3.6 4.2 5.9 7.9
Power supply 220V / 1PH / 50HZ 380V / 3PH / 50HZ
Compressor Type Hermetic Rotary Type Hermetic Scroll Type
Qty 1
Start model Directly Start
Refrigerant Type R22 /R407c
Charge
(kg)
1.3 1.6 2.2 2.8 3.8 3.0 5.0 7.0
Control TXV
Evaporator Type Double tube / Plate
Pressure drop KPa ≤50
Pipe connection size (DN) 25 25 25 25 32 50 50 50
Water in/out temp. 12/7
Cooled water flow m³/h 1.0 1.2 1.7 2.2 2.9 3.2 4.9 6.5
Condenser Type Double tube / Plate
Pressure drop KPa ≤50
Pipe connection size (DN) 25 25 25 25 32 50 50 50
Water in/out temp. 30/35
Cooling water flow m³/h 1.3 1.6 2.1 2.6 3.5 4.3 5.8 7.8
Structure Horizontal
Dimension L mm 1200 1200 1200 1200 1200 1400 1400 1400
W mm 700 700 700 700 700 655 655 655
H mm 1000 1000 1000 1000 1000 1100 1100 1100
Net weight KG 150 175 190 210 235 240 270 285
Running weight KG 195 206 224 248 280 285 325 340
Noise dB(A) 52 52 53 53 53 54 54 56
Protection measures 1.High and low voltage protection; 2.Anti-freezing protection; 3.Temperature control; 4.Power anti-phase protection; 5.High and low pressure protection; 6.High pressure exhaust temperature protection; 7.Built-in motor overheating protection; 8.Over-current protection; 9. Safe valve; 10.Check valve

Notes:
1) Built-in water pump and expansion tank are optional
2) Different power supplies are optional

Features of water cooled scroll chiller and heat pump

The water cooled scroll chiller and heat pump utilizes a scroll type compressor and clients can purchase 1 to 4 compressors depending on the size and purpose of their buildings. The equipment also features a shell and tube type condenser, evaporator, and control system.

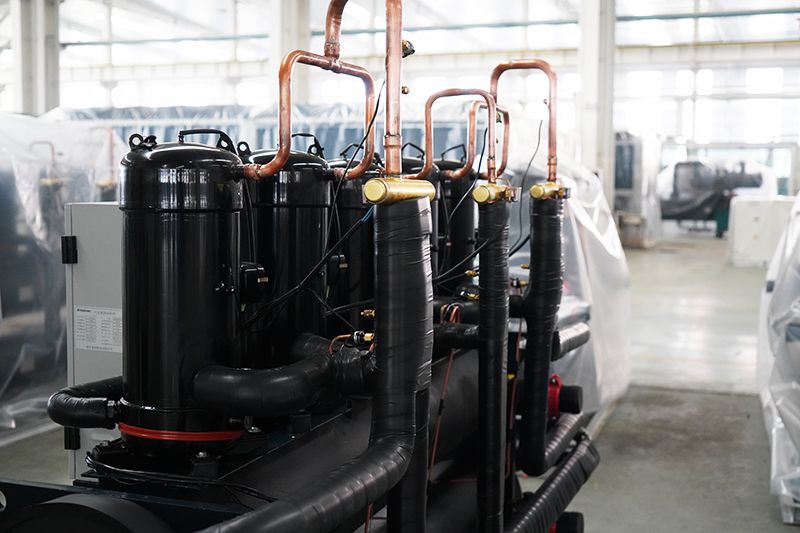

1. Compressor:
The scroll type compressor features excellent liquid impact resistance. By installing the oil heating equipment, the water cooled scroll chiller and heat pump breakdown due to incomplete oil and fluorine separation is eliminated.

2. Evaporator:
(1) The shell and tube type evaporator is equipped with an inner grooved copper tube for higher heat exchange efficiency.

3. Condenser:
(1) Condenser is shell and tube type. It features a single or multiple loop design.
(2) The manufacturing and testing of the steel shell both meet JB/T4750-2003 'Pressure Vessel for Refrigeration Equipment' standards.

4. Control system:
The distribution control cabinet is composed of compressor starting equipment, a power protector and a micro-computerized controller. The micro-computerized controller can run stably and safely under a temperature range of -15℃ to 65℃. It is equipped with a RS-232 and RS-485 standard communication interface. It can receive a remote signal for starting up and shutting down.

5. Control methods:
(1) The main engine of the water chiller is controlled based on the temperature of the return cold water or outflow.
(2) When the load reaches the set value, the machine will automatically stop. It can automatically start as well.
(3) The machine is equipped with an LCD display screen.
(4) The temperature of the inflow and outflow can be displayed and set. The running state and running time of the compressor can be controlled.
(5) Remote start and stop function.
