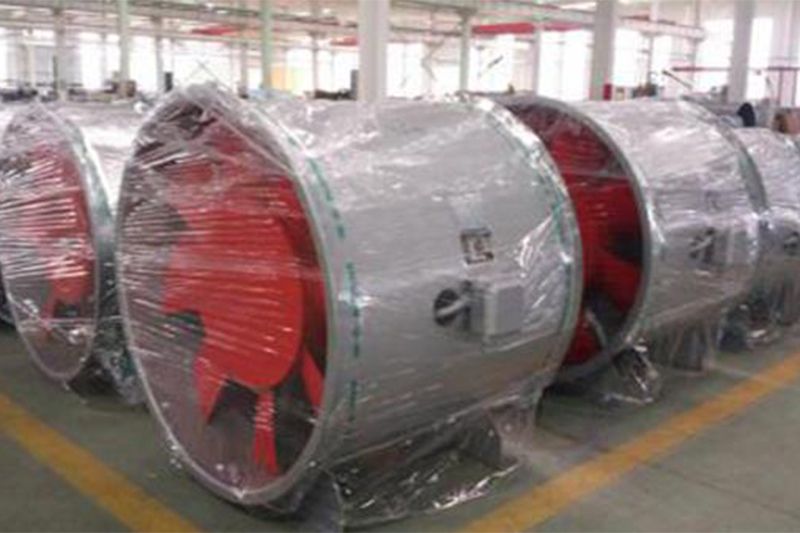

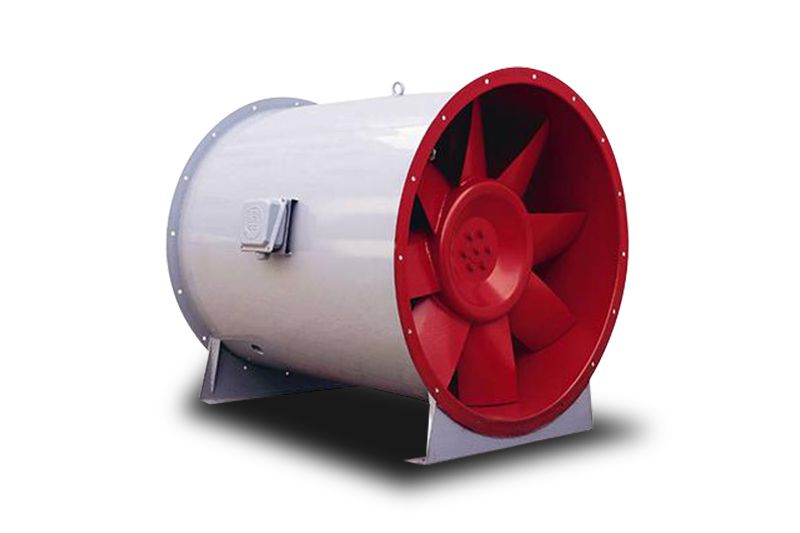

Smoke and Heat Exhaust Fan

Application

Smoke and heat exhaust fans are used as the primary ventilation and exhaust systems for high temperature flue gas in commercial buildings, civil buildings, subways, power plants, underground garages, tunnels, drying rooms and other locations.

Parameters of HTF-I smoke and heat exhaust fan
Model Diameter of Smoke Vent(mm) Blast Capacity 3 (m /h) Total Pressure(Pa) Rotational Speed(r/min) Installed Capacity (kW) A Sound Pressure Level dB(A) Weight(kg)
3.5 350 4225 3840 3350 280 360 420 2900 0.75 ≤78 32
4 400 5500 4800 3800 300 380 450 2900 1.5 ≤79 46
4.5 450 8500 7800 6120 410 550 670 2900 2.2 ≤84 55
5 500 9824 8861 6817 510 610 752 2900 3 ≤86 72
5.5 550 15200 12000 10900 521 680 708 2900 4 ≤86 88
6 600 16090 15102 13197 610 780 810 2900 5.5 ≤86 130
6.3 630 20210 18700 15600 480 510 580 1450 5.5 ≤87 132
6.5 650 21500 18000 15300 425 620 680 1450 5.5 ≤88 135
7 700 24380 22439 18908 610 655 728 1450 7.5 ≤88 152
8 800 31421 29172 26012 600 661 723 1450 7.5 ≤89 164
9 900 33510 32297 27613 562 668 840 1450 11 ≤90 225
10 1000 45679 40000 35000 630 690 770 1450 11 ≤90 240
11 1100 51552 50128 48500 580 647 690 1450 15 ≤92 280
12 1200 62760 59300 57748 624 680 740 960 18.5 ≤93 480
13 1300 74708 65370 56031 600 710 807 960 18.5 ≤94 560
15 1500 93800 86115 76041 623 710 819 960 22 ≤95 610

Please contact us for more specifications about each exhaust fan.

Features of smoke and heat exhaust fan

This fan is known for its high temperature resistance, as it can run continuously for more than a half hour under 280℃ conditions and 20 hours under the medium temperature of 100℃ without any damage, making it a perfect choice for auxiliary facilities used in fire extinguishing systems.
