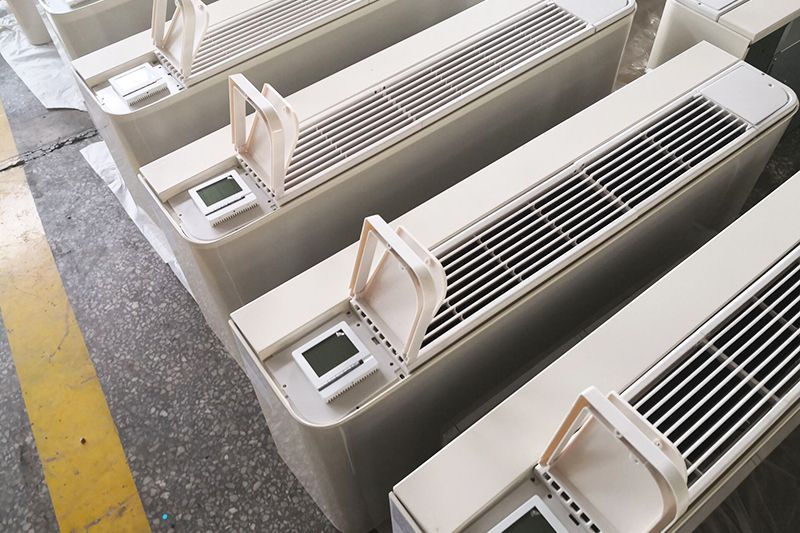

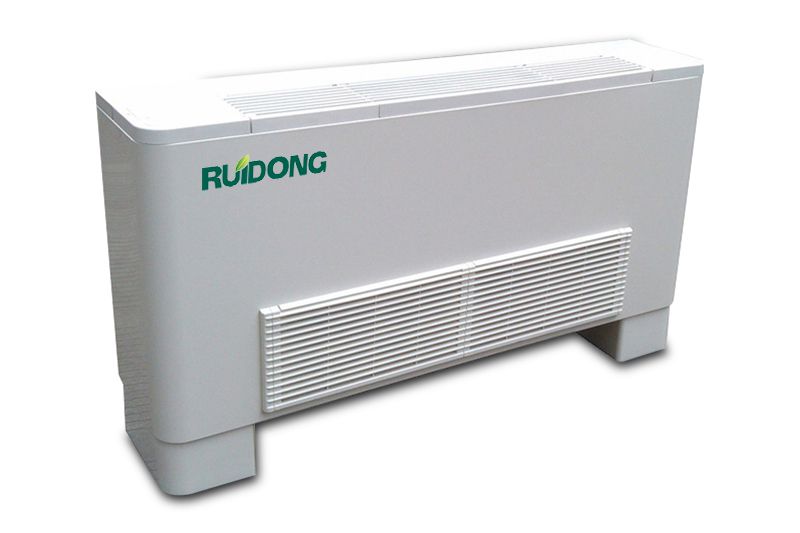

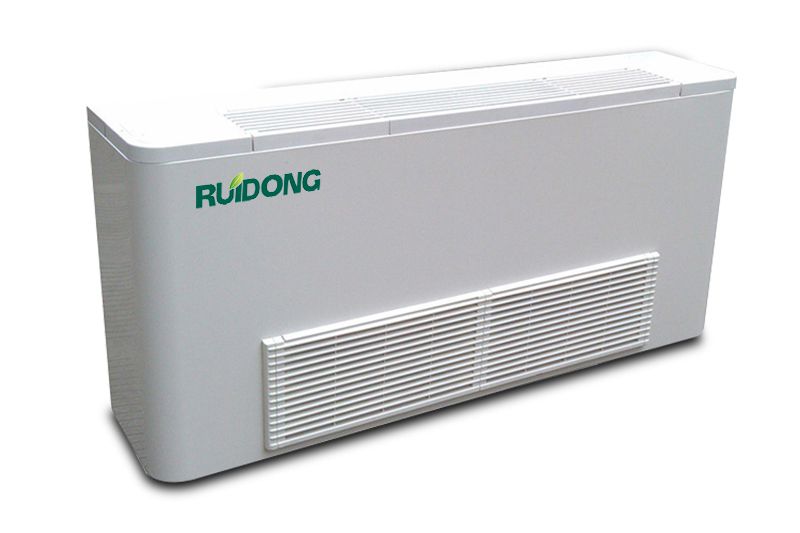

Floor Mounted Fan Coil Unit

Application

Floor mounted fan coil units are widely used in hotels, restaurants, factories, hospitals, galleries, malls and more.

Parameters of floor mounted fan coil unit
Floor Mounted Fan Coil Unit 2 pipes 3 rows
Models 22 32 52 62 72 82 102 122 142 162 202
Length of coil mm 350 500 550 650 700 800 900 1000 1200 1200 1500
Norminal air flow High m³/h 298 428 619 671 813 988 1058 1480 1560 1983 2250
CFM 175 252 364 395 478 581 622 871 918 1166 1324
Medium m³/h 253 364 526 570 691 840 899 1258 1326 1686 1913
CFM 149 214 309 335 406 494 529 740 780 992 1125
Low m³/h 194 278 402 436 528 642 688 962 1014 1298 1463
CFM 114 164 236 256 311 378 405 566 596 764 861
Cooling capacity High KW 1.44 2.06 2.98 3.5 4.02 4.5 5.31 6.87 7.46 8.61 10.61
Medium 1.18 1.69 2.44 2.87 3.3 3.69 4.35 5.63 6.12 7.06 8.7
Low 0.91 1.31 1.89 2.22 2.55 2.86 3.37 4.36 4.74 5.47 6.74
Heating capacity High KW 2.44 3.4 5.3 5.76 6.37 7.81 9.21 11.3 12.11 15.59 17.29
Medium 2.01 2.81 4.37 4.75 5.26 6.44 7.6 9.32 9.99 12.86 14.27
Low 1.53 2.13 3.31 3.6 3.98 4.88 5.76 7.06 7.57 9.74 10.81
Water volume m³/h 0.25 0.37 0.52 0.6 0.7 0.76 0.93 1.23 1.33 1.5 1.85
Water resistance kPa 5.2 12.3 9.3 12.4 16.8 21.6 32.5 32.5 20.5 28 44.5
Sound level High dB(A) 33 34 36 37 39 43 44 44 46 47 49
Medium 27 28 28 29 33 37 38 39 41 42 45
Low 22 32 24 24 27 29 30 32 32 32 34
Power V/Ph/Hz 220/1/50/60
Input-W 27 32 42 55 72 80 91 125 151 161 168
Fan type Forward multi-vane centrifugal fan
Motor type 3-speed capacitor motor
Coil No. of rows 3
Working pressure 1.6Mpa
Filter type Aluminum type or nylon type
Dimension of discharge pipe Inflow and outflow water DN20
Condensation water DN15
Dimension L mm 758 908 958 1058 1108 1208 1308 1408 1608 1608 1908
A 448 698 648 748 798 898 998 1098 1298 1298 1598
B 472 622 672 772 822 922 1022 1122 1322 1322 1622
Floor Mounted Fan Coil Unit 4 pipes 4 rows
Models 24 34 54 64 74 84 104 124 144 164 204
Length of coil mm 350 500 550 650 700 800 900 1000 1200 1200 1500
Norminal air flow High m³/h 289 415 600 650 788 957 1025 1434 1512 1922 2180
CFM 170 244 353 382 464 563 603 844 889 1131 1282
Medium m³/h 245 353 510 553 670 814 871 1219 1285 1633 1853
CFM 144 208 300 325 394 479 512 717 756 961 1090
Low m³/h 191 274 396 429 520 632 677 947 998 1268 1439
CFM 112 161 233 252 306 372 398 557 587 746 846
Cooling capacity High KW 1.38 1.98 2.86 3.36 3.86 4.32 5.1 6.6 7.16 8.27 10.19
Medium 1.15 1.64 2.37 2.79 3.2 3.59 4.23 5.47 5.94 6.86 8.45
Low 0.9 1.29 1.86 2.18 2.51 2.81 3.31 4.29 4.66 5.37 6.62
Heating capacity High KW 1.59 2.27 3.29 3.86 4.44 4.97 5.86 7.58 8.24 9.51 11.71
Medium 1.34 1.91 2.76 3.25 3.73 4.17 4.92 6.37 6.92 7.98 9.84
Low 1.03 1.48 2.14 2.51 2.88 3.23 3.81 4.93 5.35 6.18 7.61
Water flow Cooling m³/h 0.25 0.37 0.52 0.6 0.7 0.76 0.93 1.23 1.33 1.5 1.85
Heating 0.13 0.18 0.23 0.3 0.32 0.37 0.45 0.53 0.6 0.75 0.98
Water resistance kPa 5.2 12.3 9.3 12.4 16.8 21.6 32.5 32.5 20.5 28 44.5
Noise High dB(A) 33 34 36 37 39 43 44 44 46 47 49
Medium 27 28 28 29 33 37 38 39 41 42 45
Low 22 32 24 24 27 29 30 32 32 32 34
Power V/Ph/Hz 220/1/50/60
Input-W 35 41 53 69 94 103 117 156 187 201 210
Type of fan Forward multi-vane centrifugal fan
Motor type 3-speed capacitor motor
Coil No. of rows 3+1
Working pressure 1.6Mpa
Filter type Aluminum/Nylon
Dimension of joint pipe Inflow and outflow water DN20
Condensate water DN15
Dimension L mm 758 908 958 1058 1108 1208 1308 1408 1608 1608 1908
A 448 698 648 748 798 898 998 1098 1298 1298 1598
B 472 622 672 772 822 922 1022 1122 1322 1322 1622
Features of floor mounted fan coil unit

1. Installation options include vertical and horizontal types, with the left and right water pipe heads able to be freely changed. Refrigeration is regional with 6 different air flow moving methods.
2. The electromotor uses a 3-speed fan motor. Each motor is dynamically balanced.
3. The collecting head uses inner grooved copper collecting heads and a drain valve.
4. The cooling/heating coil uses copper tubes and hydrophilic aluminum foil to expand seamlessly into one.
5. The exhaust fan is a dual centrifugal exhaust fan that uses a forward wind wheel, which has a large air flow and low noise.
6. Legs are separable from the cabinet for easy transportation and installation.
7. A closed electronic control panel is connected to all wires, which is on the same side of water connection.
