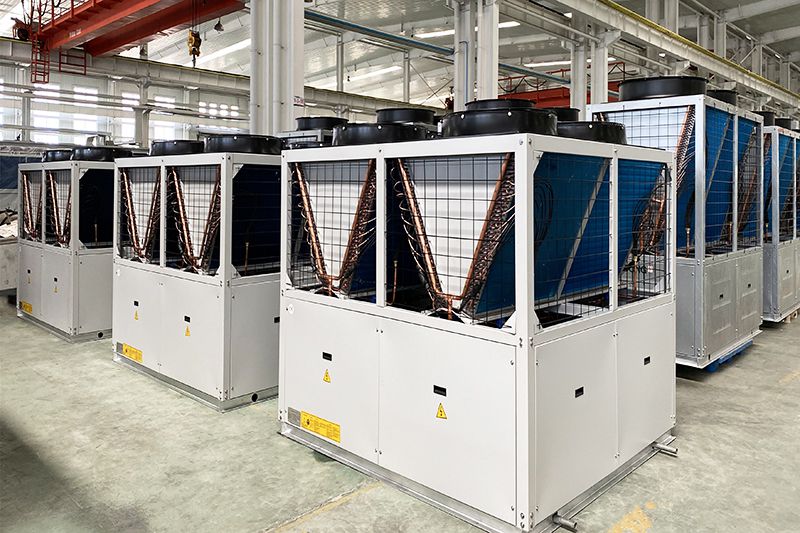

Modular Type Air Cooled Chiller and Heat Pump, 60kW-150kW

This product has been discontinued and removed from our shelves.

Modular Type Air Cooled Chiller and Heat Pump, 60kW-150kW
  • Modular Type Air Cooled Chiller and Heat Pump, 60kW-150kW
  • Modular Type Air Cooled Chiller and Heat Pump, 60kW-150kW
  • Modular Type Air Cooled Chiller and Heat Pump, 60kW-150kW
  • Modular Type Air Cooled Chiller and Heat Pump, 60kW-150kW
  • Modular Type Air Cooled Chiller and Heat Pump, 60kW-150kW

    • The modular air cooled chiller and heat pump is designed for cooling and heating operations in large commercial and industrial buildings. The chiller and heat pumps will often be installed in malls, hotels, hospitals, and office buildings. The machine set can be installed on the roofs, balconies, courtyards, and other suitable outdoor positions. The equipment does not need to be installed in a specially built water chiller machine room.

    Download
    Video
    Technical Parameters

    Type Modular
    Model - RLSFWM-B
    (RLSFWM (B)R)     		68 136 204 272 340 408 476
    Cooling capacity kW 68 136 204 272 340 408 476
    Cooling input power kW 21.1 42.2 63.2 84.3 105.4 126.5 147.6
    Running current A 41.2 82.4 123.6 164.8 206 247.2 288.4
    Heating capacity kW 70 140 210 280 350 420 490
    Heating power kW 22.1 44.1 66.2 88.2 110.3 132.4 154.4
    Running current A 39.5 79 118.5 158 197.5 237 276.5
    Max. running current A 48.2 96.4 144.6 192.8 241 289.2 337.4
    Cable diameter (copper wire distance ≤20 meters) mm2 3*16+2*10 (3*16+2*10)*2 (3*16+2*10)*3 (3*16+2*10)*4 (3*16+2*10)*5 (3*16+2*10)*6 (3*16+2*10)*7
    Compressor Type Hermetic scroll type
    Quantity 2 4 6 8 10 12 14
    Power voltage 3N-380V-50HZ
    Start mode Direct start
    Refrigerant Type R410a/R22
    Charge (kg) 11.5*2 11.5*4 11.5*6 11.5*8 11.5*10 11.5*12 11.5*14
    Control Electronic expansion valve (EXV)
    Evaporator Type Shell & tube type
    Water Pressure drop kPa 70
    Water pipe Dia. DN DN50 DN50*2 DN50*3 DN50*4 DN50*5 DN50*6 DN50*7
    Water flow m3/h 11.7 23.4 35.1 46.8 58.5 70.2 81.9

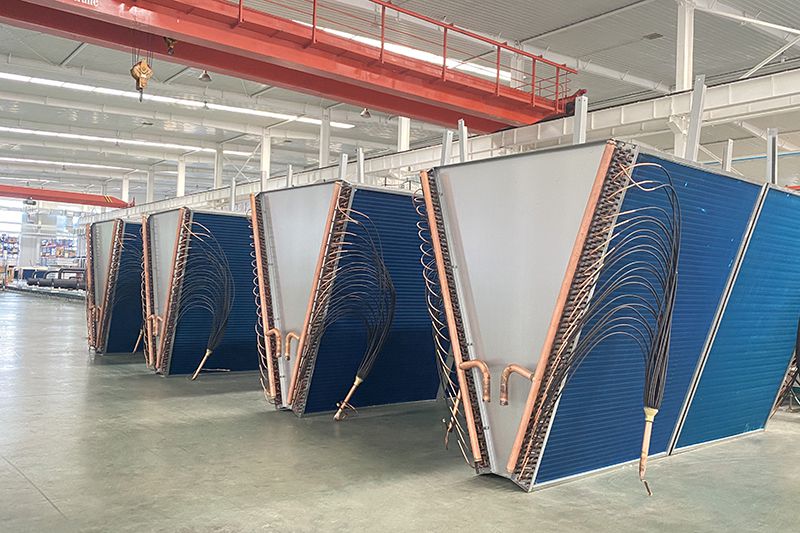

    Condenser type Internally threaded copper tube & hydrophilic aluminum fins
    Dimension L mm 2110 2110 2110 2110 2110 2110 2110
    W mm 1080 2160 3240 4320 5400 6480 7560
    H mm 1870 1870 1870 1870 1870 1870 1870
    Net weight kg 700 1400 2100 2800 3500 4200 4900
    Operation weight kg 760 1520 2280 3040 3800 4560 5320
    Noise level dB(A) 73 73 73 74 74 74 74
    Main protection measures 1. High & low voltage protection;
    2. Anti-freezing protection;
    3. Temperature control;
    4. Owe anti-phase protection;
    5. High & low pressure protection;
    6. High pressure exhaust temperature protection;
    7. Built-in motor overheating protection;
    8. Over-current protection;
    9. Safety valve;
    10.Check valve;
    Remarks 1. Cooling standard working conditions
    Ambient temperature 35℃DB/24℃WB
    Cold water inlet temperature: 12℃
    Outlet temperature: 7℃
    2. Heating standard working conditions
    Ambient temperature: 7℃DB/6℃WB
    Cold water inlet temperature: 40℃
    Outlet temperature: 45℃

    Type Modular
    Model - RLSFWM -B
    (RLSFWM -(B)R)     		136 272 408 544 680 816 952
    Cooling capacity kW 136 272 408 544 680 816 952
    Cooling input power kW 42.2 84.3 126.5 168.6 210.8 253 295.1
    Running current A 80.4 162.8 241.2 321.6 402 482.4 562.8
    Heating capacity kW 140 280 420 560 700 840 980
    Heating power kW 44.1 88.2 132.4 176.5 220.6 264.7 308.8
    Running current A 76.4 150.8 229.2 305.6 382 458.4 534.8
    Max. running current A 96.4 195.3 289.2 385.6 482 578.4 674.8
    Cable diameter (copper wire distance ≤20 meters) mm2 3*35+2*16 (3*35+2*16)*2 (3*35+2*16)*3 (3*35+2*16)*4 (3*35+2*16)*5 (3*35+2*16)*6 (3*35+2*16)*7
    Compressor Type Hermetic scroll type
    Quantity 4 8 12 16 20 24 28
    Power voltage 3N-380V-50HZ
    Start mode Direct Start
    Refrigerant Type R410a/R22
    Charge (kg) 11.5*4 11.5*8 11.5*12 11.5*16 11.5*20 11.5*24 11.5*28
    Control Electronic expansion valve (EXV)
    Evaporator Type Shell & tube type
    Water Pressure drop kPa 70
    Water pipe Dia.DN 65 65*2 65*3 65*4 65*5 65*6 65*7
    Water flow m3/h 23.4 46.8 70.2 93.6 117.0 140.4 163.7
    Condenser type Internally threaded copper tube & hydrophilic aluminum fins
    Dimension L mm 2110 2110 2110 2110 2110 2110 2110
    W mm 2160 4320 6480 8640 10800 12960 15120
    H mm 1870 1870 1870 1870 1870 1870 1870
    Net weight kg 1360 2720 4080 5440 6800 8160 9520
    Operation weight kg 1480 2960 4440 5920 7400 8880 10360
    Noise level dB(A) 73 73 73 74 74 74 74
    Main protection measures 1. High & low voltage protection;
    2. Anti-freezing protection;
    3. Temperature control;
    4. Owe anti-phase protection;
    5. High & low pressure protection;
    6. High pressure exhaust temperature protection;
    7. Built-in motor overheating protection;
    8. Over-current protection;
    9. Safety valve;
    10. Check valve;
    Remarks 1. Cooling standard working conditions
    Ambient temperature: 35℃DB/24℃WB
    Cold water inlet temperature: 12℃
    Outlet temperature: 7℃
    2. Heating standard working conditions
    Ambient temperature: 7℃DB/6℃WB
    Cold water inlet temperature: 40℃
    Outlet temperature: 45℃

    Type Modular
    Model RLSFWM68 RLSFWM136 RLSFWM204 RLSFWM272 RLSFWM340 RLSFWM408 RLSFWM476
    Nominal Cooling capacity kW 68 136 204 272 340 408 476
    Input Power kW 21.1 42.2 63.2 84.3 105.4 126.5 147.6
    Running Current A 41.2 82.4 123.6 164.8 206 247.2 288.4
    Nominal heating capacity I kW 78 156 234 312 390 468 546
    Input power kW 22.3 44.7 67 89.4 111.7 134 156.4
    Running current A 41.6 79 118.5 158 197.5 237 276.5
    Nominal heating capacity II kW 57 114 171 228 285 342 399
    Input power kW 21.3 42.6 63.9 85.2 106.5 127.8 149.1
    Running current A 41.6 83.2 124.8 166.4 208 249.6 291.2
    Max. running current A 50.4 96.4 144.6 192.8 241 289.2 337.4
    Cable diameter (copper wire distance ≤20 meters) mm2 3*16+2*10 (3*16+2*10)*2 (3*16+2*10)*3 (3*16+2*10)*4 (3*16+2*10)*5 (3*16+2*10)*6 (3*16+2*10)*7
    Compressor Type Hermetic scroll type
    Quantity 2 4 6 8 10 12 14
    Power voltage 3N-380V-50HZ
    Starting mode Starting mode
    Refrigerant Type R410a/R22
    Charge (kg) 11*2 11*4 11*6 11*8 11*10 11*12 11*14
    Control device Electronic expansion valve
    Evaporator Type Shell & tube type
    Water Pressure
    drop     		kPa 70
    Water pipe Dia.DN DN50 DN50*2 DN50*3 DN50*4 DN50*5 DN50*6 DN50*7
    Water flow m3/h 10.66 21.32 31.98 42.64 53.30 63.96 74.62
    Condenser type Internally threaded copper tube & hydrophilic aluminum fins
    Dimension L mm 2110 2110 2110 2110 2110 2110 2110
    W mm 1080 2160 3240 4320 5400 6480 7560
    H mm 1870 1870 1870 1870 1870 1870 1870
    Net weight kg 700 1400 2100 2800 3500 4200 4900
    Running weight kg 760 1520 2280 3040 3800 4560 5320
    Noise level dB(A) 73 73 73 74 74 74 74
    Main protection measures 1. High & low voltage protection;
    2. Anti-freezing protection;
    3. Temperature control;
    4. Owe anti-phase protection;
    5.High & low pressure protection;
    6.High pressure exhaust temperature protection;
    7. Built-in motor overheating protection;
    8. Over-current protection;
    9. Safety valve;
    10.Check valve;
    Remarks 1. Cooling standard working conditions
    Ambient temperature: 35℃DB/24℃WB
    Cold water inlet temperature: 12℃
    Outlet temperature: 7℃
    2. Heating standard working conditions
    Ambient temperature: 7℃DB/6℃WB
    Cold water inlet temperature: 40℃
    Outlet temperature: 45℃

    Type Modular
    Model RLSFWM136 RLSFWM272 RLSFWM408 RLSFWM544 RLSFWM680 RLSFWM816 RLSFWM952
    Nominal cooling capacity kW 136 272 408 544 680 816 952
    Cooling input power kW 42.2 84.4 126.6 168.8 211 253.2 295.4
    Running current A 82.4 164.8 247.2 329.6 412 494.4 576.8
    Nominal heating capacity I kW 156 312 468 624 780 936 1092
    Heating input power kW 44.7 89.4 134 178.7 223.4 268.1 312.9
    Running current A 80.4 160.8 241.2 321.6 402 482.4 562.8
    Nominal heating capacity II kW 114 228 342 456 570 684 798
    Heating input power kW 42.6 85.2 127.8 170.4 213 255.6 298.2
    Running current A 83.2 166.4 249.6 332.8 416 499.2 582.4
    Max. running current A 96.4 192.8 289.2 385.6 482 578.4 674.8
    Cable diameter (copper wire distance ≤20 meters) mm2 3*35+2*16 (3*35+2*16)*2 (3*35+2*16)*3 (3*35+2*16)*4 (3*35+2*16)*5 (3*35+2*16)*6 (3*35+2*16)*7
    Power voltage 3N-380V-50HZ
    Compressor Type Hermetic scroll type
    Quantity 4 8 12 16 20 24 28
    Starting mode Direct start
    Refrigerant Type R410a/R22
    Charge (kg) 11.5*4 11.5*8 11.5*12 11.5*16 11.5*20 11.5*24 11.5*28
    Control device Electronic expansion valve
    Evaporator Shell & tube type
    Water Pressure drop kPa 70
    Water pipe Dia.DN DN65 DN65*2 DN65*3 DN65*4 DN65*5 DN65*6 DN65*7
    Water flow m3/h 23.39 46.78 70.18 93.57 116.96 140.35 163.74
    Condenser type Internally threaded copper tube & hydrophilic aluminum fins
    Dimension L mm 2110 2110 2110 2110 2110 2110 2110
    W mm 2160 4320 6480 8640 10800 12960 15120
    H mm 1870 1870 1870 1870 1870 1870 1870
    Net weight kg 1360 2720 4080 5440 6800 8160 9520
    Running weight kg 1480 2960 4440 5920 7400 8880 10360
    Noise level dB(A) 73 73 73 74 74 74 74
    Main protection measures 1. High &low voltage protection;
    2. Anti-freezing protection;
    3. Temperature control;
    4. Owe anti-phase protection;
    5. High & low pressure protection;
    6. High pressure exhaust temperature protection;
    7. Built-in motor overheating protection;
    8. Over-current protection;
    9. Safety valve;
    10.Check valve;
    Remarks: 1. Cooling standard working conditions
    Ambient temperature: 35℃DB/24℃WB
    Cold water inlet temperature: 12℃
    Outlet temperature: 7℃
    2. Heating standard working conditions
    Ambient temperature: 7℃DB/6℃WB
    Cold water inlet temperature: 40℃
    Outlet temperature: 45℃
    Main protection measures
    • High and low voltage protection
    • Anti-freezing protection
    • Temperature control
    • Power anti-phase protection
    • High & low pressure protection
    • High pressure exhaust temperature protection
    • Built-in motor overheating protection
    • Over-current protection
    • Safety valve
    • Check valve

    Notes
    Cooling: Ambient temperature DB 35 ℃, WB 24 ℃ water in/out 12/7 ℃
    Heating: Ambient temperature DB 7 ℃, WB 6 ℃ water in/out temperature 40/45 ℃
    Units above can realize 1-7 units' modular connection and can control energy-regulation automatically
    Sound pressure measured at a distance of 1 m and a height of 1.5 m above the ground in an open field Built-in water pump and expansion tank are optional.

    Features
    • Easy installation and space saving. No need to be equipped with cooling water pump, cooling tower, or other auxiliary equipment. No need for a large amount of materials and installation fees.
    • One machine has dual uses. It can work as heating supply or cooling machine with the same equipment.
    • Modular type system design. Every cooling systems runs independently and backs up the other pieces. Failure of any of cooling loop will not affect normal operation of other loops.
    • The complete machine set can be assembled onsite. Standard modules are lightweight and take up minimal space.
    • Free combination among modules can be achieved according to client's demands and cooling/heating needs.
    • While the machine set is starting up, computer controls the compressors to start up in order, which reduces the current impact to power the network.
