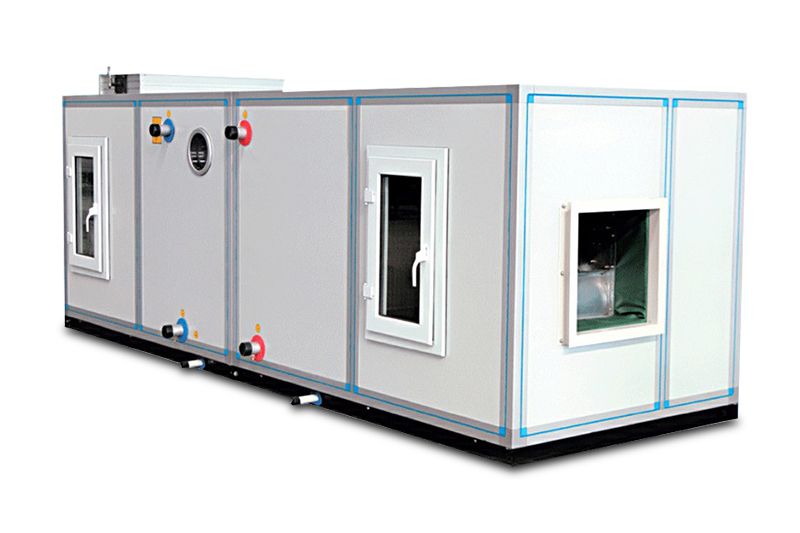

Combined Type Air Handling Unit, Air Heating and Cooling Unit

Application

ZK series air heating and cooling units are a multifunctional filter, cooler, heater, humidifier/dehumidifier, heat recovery system and air purification/sterilization system. They are most often used for air conditioning for comfort in offices, hotels, factories, sports facilities, hospitals, conference halls, computer labs, hospitals and a number of other locations. With all of the different function combinations, the air heating and cooling unit can satisfy different customer requirements.

Parameters
Air flow meter
Model Specification Nominal air flow
(m³/h)
Face velocity of coil(m/s)
2 2.25 2.5 2.75 2.85 3 3.5 4
ZK03 0709 3000 2195 2469 2743 3018 3127 3292 3840 4389
ZK04 0909 4000 2880 3240 3600 3960 4105 4321 5041 5761
ZK05 1009 5000 3566 4012 4458 4903 5082 5349 6241 7132
ZK06 0912 6000 4321 4861 5401 5941 6157 6481 7561 8641
ZK08 1112 8000 5761 6481 7201 7921 8209 8641 10081 11521
ZK10 1312 10000 7407 8332 9258 10184 10554 11110 12962 14813
ZK12 1413 12000 8687 9773 10859 11944 12379 13030 15202 17374
ZK15 1515 15000 10973 12344 13716 15088 15635 16459 19202 21946
ZK20 1519 20000 14630 16459 18288 20117 20848 21946 25603 29261
ZK25 1819 25000 18288 20574 22860 25146 26060 27432 32004 36576
ZK30 1921 30000 19995 22494 24993 27493 28492 29992 34991 39989
ZK35 2222 35000 25171 28318 31464 34610 35869 37757 44050 50342
ZK40 2322 40000 26178 29450 32723 35995 37304 39267 45812 52356
ZK50 2525 50000 32788 36887 40985 45084 46723 49182 57379 65576
ZK60 2533 60000 45226 50879 56533 62186 64447 67839 79146 90452
ZK80 2839 80000 56881 63992 71102 78212 81056 85322 99543 113763
ZK100 3045 100000 73872 83106 92340 101574 105268 110808 129276 147744
ZK120 3545 120000 86184 96957 107730 118503 122812 129276 150822 172368
ZK150 3554 150000 106868 120227 133585 146944 152287 160302 187019 213736
ZK180 3560 180000 120658 135740 150822 165904 171937 180986 211151 241315
ZK200 3960 200000 135022 151899 168777 185655 192406 202532 236288 270043
Features of air heating and cooling unit

1. Materials: steel profiles, colored steel panels or galvanized steel plates.
2. Excellent air impermeability: an elastic strip seal is used to seal the gap between the panel, frame and other adapting pieces, in order to ensure air leak levels are low, thus meeting customer and industrial requirements.
3. Anti-condensation: A rational design and configuration prevents cold bridges and condensation during operation.
4. Many configuration options: Several optimized options for heat exchange coils and parts meet the requirements of different cases.
5. Convenient installation: Quick, onsite installation is the norm. The unit is equipped with an access door and lock technology with automatic tensioning functions in order to easily carry out maintenance on inner parts.
6. Automatic control system: the unit can be equipped with a micro-computerized controller, fan starter and frequency converter, in order to achieve different intelligent running modes and accurately control each parameter of the air conditioning system.

Functional Section

Return air section: This section is located at the inlet side of the unit. It is equipped with an axial flow fan, designed to ensure the return air flow regardless of any resistance within the air flue.
Mixed air section: This section is equipped with an exhaust valve and outside air damper respectively. Two sections are separated by a mixer selector valve. This section is designed to regulate the air flow.
Section with medium efficiency filter bag: It works for the primary air supply filter, and is located in the back of the mixed air section. The filter material is comprised of non-woven fabrics.
Spray Section: This section is located behind the filter bag, and is used for humidifying, cooling and dust removal of the air in the units. The spray room is composed of a water supply system, spray system, water fender and water pool.
Surface cooling section: This section cools the air when the temperature of the supplied air is too high. This section is made of a copper tube.
Air supply section: This section includes the air intake fan and air exhaust fan.
Other functional sections: water retaining section, evaporation section, high-efficiency self-cleaning cartridge filter section and combustion section.
