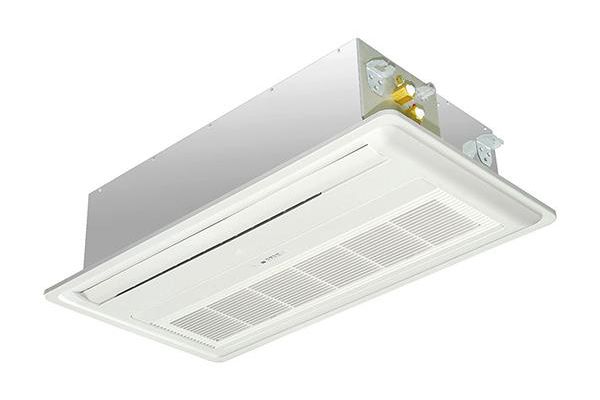

1-Way Cassette Fan Coil Unit

Application

Wall mounted fan coil units are widely used as air conditioner combinations in multiple rooms or large spaces in industrial and civil buildings, such as hotels, restaurants, factories, hospitals, galleries, malls, and office buildings in order to meet building cooling, heating and ventilation requirements.

Parameters
Model FP-35BG FP-68BG FP-84BG FP-102BG
P 1 P 1.5P 2P 3P
Air flow(m3/h) H 340 680 840 1020
M 300 480 685 780
L 230 360 580 650
Cooling capacity(W) H 1980 3500 4500 5400
M 1630 2610 3440 4500
L 1380 2150 2750 3800
Heating capacity(W) H 2970 5250 6750 8100
M 2450 3950 5160 6800
L 2060 3700 4130 6000
Noise dB(A) ≤36 ≤45 ≤48 ≤48
Cooling water temperature 7℃-12℃
Heating water temperature 60℃-50℃
Power(V/Hz) Single-phase AC 220V、50Hz
Water inlet and outlet ZG1/2
Dimension(L×W×H) 890×290×180 890×120×180 1030×290×185 1080×330×215
Unit weight(kg) 9 12.8 14 16
Model (2 pipes) RFP034W RFP051W RFP068W RFP085W RFP102W RFP136W
Power 220V, 50Hz, 1Ph
Nominal air flow H m3/h 340 510 680 850 1020 1360
M 280 380 515 660 765 1010
L 180 260 340 430 530 710
Static pressure Pa 0 0 0 0 0 0
Cooling capacity TH H W 1800 2700 3600 4500 5400 7200
BTU/h 6142 9212 12283 15354 18425 24566
SH W 1350 2025 2700 3375 4050 5400
BTU/h 4606 6909 9212 11516 13819 18424
TH M W 1476 2214 2952 3690 4428 5904
W 978 1399 1963 2409 3044 3926
SH L W 1098 1647 2196 2745 3294 4392
W 649 960 1355 1715 2060 2710
Heating capacity H W 2700 4050 5400 6750 8100 10800
M W 2146 3219 4293 5366 6439 8586
L W 1512 2268 3024 3780 4536 6048
Noise H 0Pa dB(A) 37 39 41 43 45 46
Input power H 0Pa W 30 38 45 50 90 100
Water flow m3/h 0.31 0.46 0.62 0.77 0.93 0.93
Water resistance kPa 12 14 17 18 22.5 23.5
Dimension of joint pipe for water inflow and outflow Water inflow ZG1/2" ZG1/2" ZG1/2" ZG1/2" ZG1/2" ZG1/2"
Water outflow ZG1/2" ZG1/2" ZG1/2" ZG1/2" ZG1/2" ZG1/2"
Coil Type high efficient copper tube with aluminum outer ring (with hydrophilic aluminum surface)
Max. pressure MPa 1.6 1.6 1.6 1.6 1.6 1.6
Dimension of condensate water joint pipe mm ¢16 ¢16 ¢16 ¢16 ¢16 ¢16
Unit dimension L×W×H mm 795*285*215 795*285*215 990*330*230 990*330*230 1090*330*255 1090*330*255
Package size L×W×H mm 905*370*283 905*370*283 1065*375*275 1065*375*275 1145*375*315 1145*375*315
Weight kg 11.2 11.2 14.5 14.5 16.5 16.5
Features of wall mounted fan coil unit

1. Easy control: use of micro-computerized controller, infrared wireless remote control with time switch, temperature setting, three-speed (H-M-L) automatic control, air direction automatic changing and a room temperature display bring convenience and excellence for wall mounted fan coil unit.
2. Reliability and safety. Coils all pass pressure & leak testing. Joint pipes in the inlet and outlet (collecting head) use brass to be both reliable and durable with a service life of more than 45,000 hours.
3. High efficiency and sufficient capacity: The heat exchanger uses a seamless copper tube and it expands into one with aluminum vanes, with the advantages of a high heat exchanging efficiency and sufficient cooling and heating capacity.
4. Low noise: This fan coil unit uses oil-free rolling bearings with a new type of cross flow vane.
5. Long service life: An aluminum alloy wind wheel guarantees the wind wheel is invulnerable to deformation, saving the effort of needing to be heated in winter, thus extending the service life.
