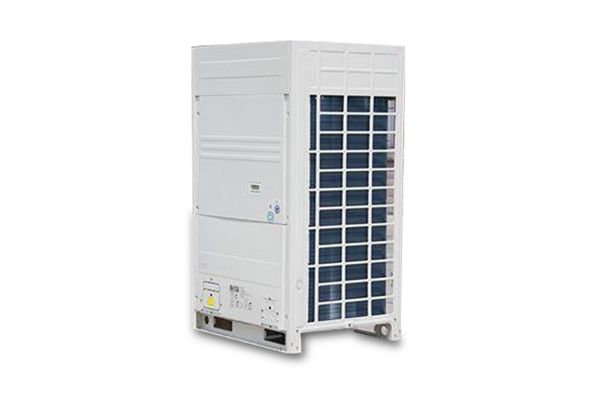

VRV Air Conditioner, 25.2kW-200kW Variable Refrigerant Volume Air Conditioner

Application

This 25.2kW-200kW air conditioning system with variable refrigerant volume is designed for home and commercial use. The equipment can cool large homes, apartment buildings, office buildings, and many other sizable structures.

Parameters
Air Conditioning System Indoor unit
Model RDVRV025CO RDVRV028CO RDVRV034CO RDVRV040CO RDVRV045CO RDVRV050CO RDVRV056CO RDVRV062CO
Cooling capacity kW 25 28 33.5 40 45 50 56 61.5
Heating capacity kW 27 31.5 37.5 45 50 56 63 69
Power supply 380v/3ph/50hz/60hz
Rated input Cooling kW 6.12 7.09 8.63 10.67 12.64 14.16 15.56 16.71
Heating kW 6.07 7.02 8.6 10.58 12.6 14.12 15.52 16.65
Rated current Cooling kW 12.5 13.4 16.4 19.6 24.1 30.5 35.2 40
Heating kW 13.6 13.9 16.7 20 24 30.1 34.9 35
Refrigerant Type R410A
Charge qty. kg 8 10 12 16
Compressor Brand/Type Hitachi/Scroll
Qty. 1 2
Fan Type Axial
Qty. 1 2
Motor type DC
Airflow m3/h 12000 13980 18780 20820 22020
Connection pipe Liquid pipe ∮12.7 ∮15.88
Gas pipe 22.23 25.4 28.58
Connection method Weldi.g
ESP Pa 0-80
Sound level dB(A) 45-57 45-59 45-62 45-63
Net dimension mm 930*860*1710 1240*860*1710 1500*860*1710
Note:
1. Operating temperature for cooling ranges from -5℃ to 52℃; for heating ranges from -20℃ to 24℃.
2. Cooling data above is obtained in the indoor condition of DB 27℃/ WB 19℃ and outdoor condition of DB 35℃.
3. Heating data above is obtained in the indoor condition of DB 20℃/ WB 15℃ and outdoor condition of DB 7℃.
4. Sound level data is obtained at a distance of 1m from the unit.
5. The above data may be changed without any notice for future improvement.
Air Conditioning System ROUND-WAY TYPE
ROUND-WAY TYPE MODEL RDVRV028CI-R RDVRV036CI-R RDVRV045CI-R RDVRV050CI-R RDVRV056CI-R RDVRV063CI-R RDVRV071CI-R RDVRV080CI-R RDVRV090CI-R RDVRV100CI-R RDVRV112CI-R RDVRV125CI-R RDVRV140CI-R RDVRV160CI-R
Cooling capacity kW 2.8 3.6 4.5 5.0 5.6 6.3 7.1 8.0 9.0 10.0 11.2 12.5 14.0 16.0
Heating capacity kW 3.2 4.0 5.0 5.6 6.3 7.1 8.0 9.0 10.0 11.2 12.5 14.0 16.0 18.0
Power supply 220V/1Ph/50Hz
Power input W 55 70 75 90 150 190 210
Fan type Axial
Fan motor Power output W 26 30 37 50 65
Fan speed H rpm 490 580 670 590 630 630
M rpm 400 490 600 500 590 590
L rpm 340 410 500 425 480 480
SL rpm 300 360 400 350 420 420
Air flow H m3/h 750 810 900 900 960 960 1020 1200 1500 1620 1700 1800 1800 2100
M m3/h 660 690 720 720 780 780 900 1080 1200 1260 1360 1500 1500 1800
L m3/h 540 540 600 600 600 600 690 870 900 1020 1080 1200 1200 1500
Sound level H dB(A) 32 32 36 36 36 36 39 39 42 42 42 44 44 44
M dB(A) 30 30 33 33 33 33 36 36 39 39 39 40 40 40
L dB(A) 25 25 31 31 31 31 33 33 35 35 35 35 35 35
Connection pipe Liquid pipe mm ∮6.35 ∮9.52
Gas pipe mm ∮12.7 ∮15.88
Drian pipe Ex-diameter mm DN25
Net dimension Body mm 840*840*230
Panel mm 950*950*50
Net weight Body kg 23 25 30 32
Panel kg 6
Accessories Plenum box X
Air filter
Built-in electronic expansion valve
Drain pump
AC motor
DC motor X
Remote controller Optional
Wire controller Optional
Centralized controller Optional
Air Conditioning System 2-WAY TYPE
2-WAY TYPE MODEL RDVRV028CI-2 RDVRV036CI-2 RDVRV045CI-2 RDVRV056CI-2 RDVRV071CI-2 RDVRV080CI-2 RDVRV090CI-2 RDVRV100CI-2 RDVRV112CI-2 RDVRV125CI-2 RDVRV140CI-2
FOB Price USD 437 442 464 467 512 528 622 643 673 678 682
Cooling capacity kW 2.8 3.6 4.5 5.6 7.1 8.0 9.0 10.0 11.2 12.5 14.0
Heating capacity kW 3.2 4.0 5.0 5.6 8.0 9.0 10.0 11.2 12.5 14.0 16.0
Power supply 220V/1Ph/50Hz
Power input W 60 62 68 85 94 98 129 135 175 185 268
Fan type Centrifugal
Fan motor Power output W 10 12 16 25 30 30 20*2 25*2 30*2 45*2 45*2
Connection pipe Liquid pipe mm ∮6.35 ∮9.52
Gas pipe mm ∮12.7 ∮15.88
Drian pipe Ex-diameter mm DN20
Net dimension Body mm 840*520*315 960*520*315 1200*520*315 1680*520*315
Panel mm 1083*630*33 1203*630*33 1443*630*33 1923*630*33
Net weight kg 32 32 37 37 40 40 45 45 47 47 47
Accessories Plenum box X
Air filter
Built-in electronic expansion valve
Drain pump
AC motor
DC motor X
Remote controller O
Wire controller O
Centralized controller O
Air Conditioning System 1-WAY TYPE
1-WAY TYPE MODEL RDVRV028CI-1 RDVRV036CI-1 RDVRV045CI-1 RDVRV056CI-1 RDVRV071CI-1
FOB PRICE USD 330 354 388 468 495
Cooling capacity kW 2.8 3.6 4.5 5.6 7.1
Heating capacity kW 3.2 4.0 5.0 6.3 8.0
Power supply 220V/1Ph/50Hz
Power input W 40 45 50
Fan type Centrifugal
Fan motor Power output W 10 18 25 30 30
Air flow H m3/h 510 600 720 910 1000
M m3/h 410 480 570 830 850
L m3/h 310 360 450 700 750
Sound level H dB(A) 36 38 42 45 47
M dB(A) 34 28 39 41 43
L dB(A) 30 26 35 39 40
Connection pipe Liquid pipe mm ∮6.35 ∮9.52
Gas pipe mm ∮12.7 ∮15.88
Drian pipe Ex-diameter mm DN20
Net dimension Body mm 870*460*250 1180*495*290
Panel mm 1070*520*33 1380*550*33
Net weight kg 25 27 39
Accessories Plenum box X
Air filter
build-in EXV O (external)
Drain pump
AC motor
DC motor X
Remote controller O
Wire controller O
Centralized controller O
Features of air conditioning system

1. Energy saving. Hitachi variable frequency scroll type compressor realizes 27 level capacity regulating and energy output as needed. It is highly efficient and cost effective.
2. Easy installation. It can be installed on balconies, rooftops or ground level. Exclusive machine room or special foundation are not necessary for the air conditioning system. Installation is easy and simple.
3. Ruidong RJV-V series central air-conditioning systems adopt high-accuracy proportion integration differentiation (PID) for control. By the accurate measurement of sensors, the running of variable speed compressors and pulse width modulation (PMW) are consistently controlled to adjust the flow of cold media.
4. Quick cooling and heating capacity. The temperature difference from setting temperature is within ±0.5℃.
5. The cold media pipe can be as long as 175m. The vertical elevation for the indoor and outdoor unit of the same system can be up to 50m. Indoor unit has an elevation difference up to 30m. The distance between the first branch and indoor unit is 40m.
6. Low noise during operation. Scroll type exhaust fan.
